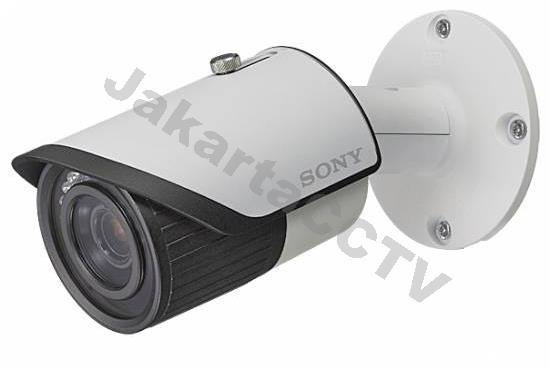

Sony SSC-CB565R

Image device

1/3-type EXview HAD CCD II

Number of effective pixels (H x V)

480,000 pixels (976 x 494)

Signal system

NTSC standard

Horizontal resolution

700 TV lines (sharp mode)

S/N ratio

More than 55 dB (AGC Off)

Minimum illumination

Color: 0.06 lx, B/W: 0 lx (F1.2, 50 IRE)Color: 0.04 lx, B/W: 0 lx (F1.2, 30 IRE)

Video output

VBS: 1.0 Vp-p

Synchronization

Internal/AC line lock selectable

Gain control

Auto (On/Off)

White balance

ATW (2000K to 10000K), ATW-PRO (2500K to 6000K)

Lens type

Built-in variable focal lens

Zoom ratio

Optical 3.7x

Horizontal viewing angle

101.8 degrees to 27.4 degrees

Focal length

f=2.8 mm to 10.5 mm

F number

F1.2 (Wide), F2.7 (Tele)

Minimum object distance

300 mm (11 7/8 inches)

Day/Night

Yes (removable IRC filter)

IR working distance

30 m (98 feet ) (50 IRE)

Noise reduction

Yes (2D NR)

Back light compensation

Yes (iBLC, On/Off)

Automatic tone reproduction

Yes (ATR-Lite, On/Off)

Mass

650 g (1 lb 7 oz)

Dimensions

ø77 mm x 110 mm (ø3 1/8 inches x 4 3/8 inches)

Power requirement

AC 24 V ±10%, DC 12 V ±10%

Power consumption

Max. 5.5 W

Operating temperature

-10 °C to +50 °C (14 °F to 122 °F)

Storage temperature

-40 °C to +60 °C (-40 °F to +140 °F)

Operating humidity

20% to 80%

Storage humidity

20% to 95%

Ingress Protection

IP66
