Produk sesudahnyaSAMSUNG XRN-2010

SAMSUNG XRN-2011

tidak termasuk pengiriman

• Up to 32CH, Max. 12MP Camera supported
• 256Mbps network camera recording
• Support 4K video out on HDMI monitor
• Support Dual monitor video out
• Support H.265, H.264, MJPEG compression
• WiseStream support
• Max. 8 internal HDDs (48TB), e-SATAT / iSCSI storage support
• Support RAID 5
• Easy installation with front swap hard disks
• ARB & Failover (N+1) support

Qty:

Overview
Contact Us

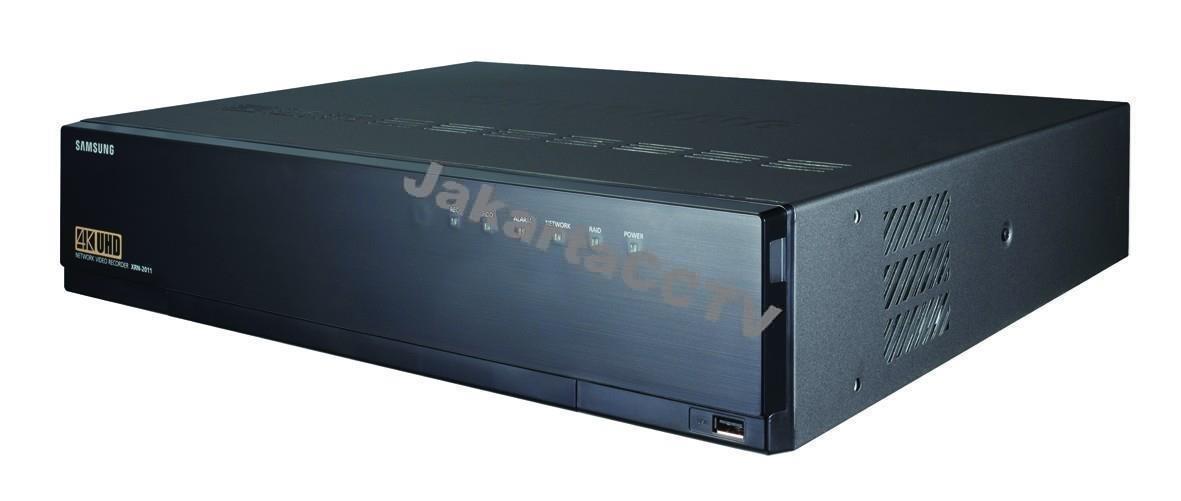

Jual NVR murah, SAMSUNG HANWHA TECHWIN XRN-2011 yang bisa anda beli sekarang dari JakartaCCTV dengan harga yang terjangkau dan kompetitif. Network Video Recorder HANWHA XRN-2011 ini mampu merekam video dengan resolusi hingga 12MP pada kecepatan 256Mbps dengan menerima input dari 32 saluran IP kamera. File yang direkam bisa diputar ulang secara sinkron ke 2 monitor pada saat yang bersamaan dengan resolusi hingga 4K pada format HDMI. File tsb pun lalu bisa disimpan secara internal karena NVR ini dapat dipasang dengan 8 internal HDD yang memiliki kombinasi kapasitas hingga 48TB, atau diback up secara eksternal melalui eSATA Port yang tersedia pada NVR.

Untuk mengoptimasi fungsi penyimpanan, NVR ini juga mendukung pertukaran hard disk melalui sisi depan untuk pergantian HDD yang lebih mudah, teknologi WiseStream yang dapat mengkompress data hingga 75% untuk efisiensi penyimpanan dan bandwidth, teknologi RAID level 5 yang bisa membaca/menulis file berukuran besar dengan super cepat, serta mode ARB & failover (N+1) untuk back up pada saat terjadi kegagalan jaringan. Dan jika anda ingin menggabungkan NVR ini dengan kamera CCTV merek lainnya, maka anda tidak perlu khawatir karena NVR ini juga mematuhi standard ONVIF yang membuatnya cocok dengan banyak merek lainnya.

FITUR & FUNGSI SAMSUNG XRN-2011

Up to 32CH, Max. 12MP Camera supported
256Mbps network camera recording
Support 4K video out on HDMI monitor
Support Dual monitor video out
Support H.265, H.264, MJPEG compression
WiseStream support
Max. 8 internal HDDs (48TB), e-SATAT / iSCSI storage support
Support RAID 5
Easy installation with front swap hard disks
ARB & Failover (N+1) support

Network Video Recorder SAMSUNG XRN-2011 ini hanya bisa anda dapatkan dengan harga distributor yang murah di JakartaCCTV, yang disertai dengan garansi resmi 2 tahun dari distributor HANWHA TECHWIN di Indonesia. Beli produk ini dari kami sekarang dan anda juga akan mendapatkan tips yang aman dan berguna dalam memilih dan membeli NVR SAMSUNG yang sesuai dengan kebutuhan anda. Selain itu kami juga menawarkan jasa pemasangan CCTV untuk setiap paket/produk CCTV yang kami jual. Jadi tunggu apa lagi ? Hubungi kami sekarang juga.

Display
Video	Inputs	Up to 32CH
	Resolution	CIF ~ 12MP
	Protocols	Samsung, ONVIF
Live	Local Display	1x HDMI, 1x VGA dual monitor
	Multi Screen Display	[Local monitor] 1 / 2V / 3V / 4 / 9 / 16 / 25 / 36 / Sequence, [Web] 1 / 4 / 9 / 16 / 25 / 36 / Sequence
	Performance	[Local monitor] 12M (30fps), 8.3M (120fps), 1080p (480fps), 720P (960fps), D1 (960fps)
Performance
Operating System	Embedded	Linux
Recording	Compression	H.265, H.264, MJPEG, WiseStream (H.265, H.264)
	Recording Bandwidth	Max. 256Mbps, Max. 100Mbps (RAID 5 mode)
	Resolution	CIF ~ 12MP
	Mode	Normal, Schedule (Continuous / Event), Event (Pre / Post)
	Event Trigger	Alarm input, Video loss, Camera event (Sensor, MD, Video analytics)
	Event Action	E-mail, PTZ preset, Alarm out, Buzzer, Monitor out
Search & Playback	Playback Bandwidth	32Mbps (16CH simultaneously)
	Performance	Max. 4 users (Local 1, Remote 3)
	Mode	Date & Time (Calendar) / Event log list / Text search
	Simultaneous Playback	Max. 16CH (Local monitor, CMS)
	Resolution	CIF ~ 12MP
	Fish-eye Dewarping	WEB / CMS
	Playback Control	Fast/Slow Forward/Backward, Move one step up/down
Storage	Built-in / Internal HDD	0TB ~ 6TB / 8 (Hot swap) - Max. 48TB (Non-RAID), Max. 36TB (RAID 5)
	External	iSCSI storage (Max. 384TB), Promise VessRaid R2600
	RAID	RAID 5 (Array size : 4 HDD x 2 array)
Backup	File Backup (Via Web)	BU/Exe (GUI), JPG/AVI (Network)
Backup	Function	Multi channel (Up to 16CH) play, Date-time/title display
Sensor	Input / Output	8 / 4 (NO/NC selectable)
Audio	Input	32CH (Network)
	Compression	G.711, G.726, AAC (16/48KHz)
	Audio Communication	2-way
Network
Interface	RJ-45, Gigabit ethernet x 2
Protocol Support	TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI (Server, Client)
DDNS	iPOLiS DDNS
Transmission Bandwidth	512Mbps (iSCSI off ), 256Mbps (iSCSI on)
Max. Remote Users	Search 3 / Live unicast 10 / Live multicast 20
IP	IPv4 / IPv6
Security	IP address filtering, User access log, 802.1x authentication, Encryption
Language	English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai
OS	Window 7, 8, 10, Mac OS X (10.8 or above)
Web Browser	MS IE, Google Chrome, Mac Safari, Firefox
Viewer Software	Type	SSM, Webviewer, SmartViewer, iPOLiS mobile viewer
Viewer Software	CMS Support	SDK / CGI (SUNAPI)
Functions
Camera Setup	Register	Auto, Manual
Camera Setup	Setup Items	IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup, Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye dewarping mode, Hallway view setup, Camera webpage
PTZ	Control / Preset	Via GUI, Webviewer, SPC-2000 / 255 presets
Smart Phone	OS	Android, iOS
	Protocol Support	RTP, RTSP, HTTP, CGI (SUNAPI)
	Control	Live (16CH) : Multi-profile support, Playback (1CH)
	Max. Remote Users	Search 3 / Live unicast 10
Redundancy	Failover / ARB	N + 1 / Yes
System Control		Mouse, Web, SPC-2000 (Controller)
Indicator / Interface
Front	Indicator	LED (Status indicator) : 6ea HDD action 1, Alarm 1, Power 1, Record 1, RAID 1, Network1
Connections	HDMI	Main : 1ea (Both support Live / PB / Setup) Support up to 4K (3840 x 2160, Single monitor mode)
	VGA	Sub : 1ea (Support live screen up to 16 div. mode)
	Audio	Out 1ea (RCA, Line)
	Ethernet	RJ-45 2ea (LAN/WAN, 1Gbps)
	Alarm	In 8ea (Terminal block), Alarm reset 1ea Out 4ea (Terminal block) - Relay out1(NO/NC/COM) - Relay out 2 ~ 4 (NO/COM)
	USB	2ea (Front 1, Rear 1)
	Storage	1 e-SATA
	Serial / Reset	RS-232C / Switch 1ea
	Power Cord	1ea AC Inlet
System
Log	Log List	Max. 20,000 (System log, Event log each)
General
Electrical	Input Voltage / Current	100 ~ 240V AC ±10%, 50/60Hz / 4 ~ 1.5A
Electrical	Power Consumption	Max. 99W (338BTU, 6TB HDD x 8ea)
Environmental	Operating Temperature	+0°C ~ +40°C (+32°F ~ +104°F)
Environmental	Operating Humidity	20% ~ 85% RH
Mechanical	Color / Material	Black / Metal
	Dimensions (WxHxD)	440.0 x 88.0 x 384.8mm (17.32" x 3.46" x 15.15") (2U)
	Weight	5.43Kg (11.97 lb) (without HDD)
