Produk sesudahnyaSAMSUNG XRN-2011

SAMSUNG SRN-473SP

tidak termasuk pengiriman

• Up to 4CH 8M supported
• 32Mbps network camera recording
• Plug & play by 4 PoE/PoE+ ports
• Max. 1 HDD
• HDMI / VGA local monitor

Qty:

Overview
Contact Us

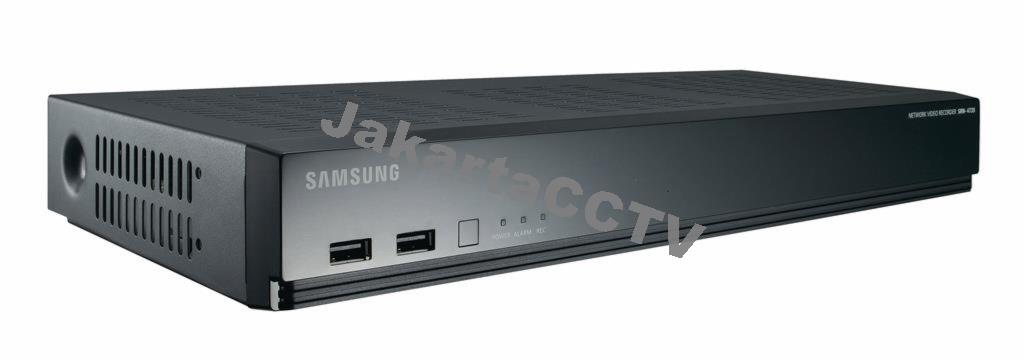

Jual NVR murah, SAMSUNG HANWHA TECHWIN SRN-473SP yang bisa anda beli sekarang dari JakartaCCTV dengan harga yang terjangkau dan kompetitif. Network Video Recorder HANWHA SRN-473SP ini mampu merekam video dengan resolusi hingga 8MP pada kecepatan 32Mbps dengan menerima input dari 4 buah saluran IP kamera yang dapat dikoneksikan melalui 4 plug & play POE+ port yang terdapat pada NVR. File yang direkam bisa diputar ulang dan ditampilkan pada format VGA/HDMI. Selain itufile tsb pun lalu bisa disimpan secara internal karena NVR ini dapat dipasang dengan 1 internal HDD dengan kapasitas sebesar 4 TB atau diback up ke media eksternal melalui USB Port yang tersedia pada NVR.

Dan jika anda ingin menggabungkan NVR ini dengan kamera CCTV merek lainnya, maka anda tidak perlu khawatir karena NVR ini juga mematuhi standard ONVIF yang membuatnya cocok dengan banyak merek lainnya.

FITUR & FUNGSI SAMSUNG SRN-473SP

Up to 4CH 8M supported
32Mbps network camera recording
Plug & play by 4 PoE/PoE+ ports
Max. 1 HDD
HDMI / VGA local monitor

Network Video Recorder SAMSUNG SRN-473SP ini hanya bisa anda dapatkan dengan harga distributor yang murah di JakartaCCTV, yang disertai dengan garansi resmi 2 tahun dari distributor HANWHA TECHWIN di Indonesia. Beli produk ini dari kami sekarang dan anda juga akan mendapatkan tips yang aman dan berguna dalam memilih dan membeli NVR SAMSUNG yang sesuai dengan kebutuhan anda. Selain itu kami juga menawarkan jasa pemasangan CCTV untuk setiap paket/produk CCTV yang kami jual. Jadi tunggu apa lagi ? Hubungi kami sekarang juga.

DISPLAY
Video	Inputs / Resolution	Up to 4CH / CIF ~ 8M
Video	Protocols	Samsung, ONVIF
Live	Local Display	HDMI / VGA
	Multi Screen Display	[Local monitor] 1 / 4 / Auto sequence, [Web] 1 / 4 / Auto sequence
	Performance	[Local monitor] 8M (20fps), 5M (30fps), 3M (50fps), 2M (120fps), 720p (120fps), D1 (120fps) [Web] 5M (30fps), 3M (60fps), 2M (120fps), 720p (120fps), D1 (120fps)
PERFORMANCE
Operating System	Embedded	Linux
Recording	Compression	H.264, MJPEG
	Recording Bandwidth	32Mbps, 2M 4 camera real-time recording
	Resolution	CIF ~ 8M
	Mode	Normal, Scheduled, Event (Pre / Post)
	Event Trigger	Alarm input (2), Video loss, Camera event (Alarm in, MD, Video analytics)
	Event Action	E-mail, PTZ preset, Alarm out, Buzzer, Monitor out
Search & Playback	Playback Bandwidth	32Mbps
	Performance	Max. 3 users
	Mode	Date & Time (Calendar) / Event log list / Text Search (POS)
	Simultaneous Playback	[Local monitor] Up to 4CH, [Web, CMS] Up to 4CH
	Resolution	CIF ~ 8M
	Fish-eye Dewarping	Via Smartviewer
	Playback Control	Fast/Slow Forward/Backward, Move one step up/down
Storage	Internal	1 SATA
Storage	Max.Capacity	Internal 4TB
Back up	File Back up	BU/EXE (USB), JPG/AVI (Web, CMS)
Back up	Function	Max. 4CH playback, Date-time/title display
Sensor	Input / Output	2 / 1 (NO/NC 1ea)
Audio	Input / Compression	4CH (Network) / G.711, G.726, AAC (16/48KHz)
Audio	Audio Communication	2-way
NETWORK
Protocol Support		TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S)
DDNS		Samsung iPOLiS DDNS
Transmission Bandwidth		Max. 64Mbps
Max. Remote Users		Search 3 / Live unicast 10 / Live multicast 20
IP		IPv4 / IPv6
Security		IP address filtering, User access log, 802.1x authentication, Encryption
Language	GUI / Web	English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai
OS		Supported OS : Window XP (Service pack 2 or above), Vista, 7, 8, Mac OS X (10.6 or above)
Web Browser		Microsoft Internet Explorer (Updated Ver. 8 ~10, IE 9 or above recommended) Mozilla Firefox (Ver. 19.x or above), Google Chrome (Ver. 26.x or above), Apple Safari (Ver. 6.0.3 or above)
Viewer Software	Type	SSM, Webviewer, SmartViewer, iPOLiS mobile viewer
Viewer Software	CMS Support	SDK / CGI (SUNAPI)
FUNCTIONS
Camera Setup	Register	PnP mode, Manual mode
Camera Setup	Setup Items	IP address, Add profile edit, Bitrate, Compression, GOP, Quality Camera MD setup Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS)
Camera Control	PoE	Monitor PoE power consumption, On/Off control for each PoE camera Remote reset for each PoE camera
Easy Configuration		Setup Wizard (Date/Time, Network, Auto camera configuration)
PTZ	Control / Preset	Via GUI, Webviewer, SPC-2000 / 255
Smart phone	OS	Android, iOS
Smart phone	Control	Live (4CH) / Playback (1CH)
System Control		Mouse, IR Remocon, Web, SPC-2000 (Controller)
INDICATOR / INTERFACE
Front	Indicator	Power status LED 1ea, Alarm status LED 1ea, Record status LED 1ea
Front	USB	2ea (Front 2ea)
Connections	HDMI / VGA	1ea / 1ea
	Audio	Out 1ea (RCA, Line)
	Ethernet	RJ-45 4ea (PoE/PoE+, 100Mbps), RJ-45 1ea (WAN, 100Mbps)
	Alarm	In 2ea (Terminal block) / Out 1ea (Terminal block)
	Reset	Yes (Factory reset)
SYSTEM
Log	Log List	Max. 20000 (System log, Event log each)
GENERAL
Electrical	Input Voltage / Current	54V DC / 1.67A
	Power Consumption	Max. 77W (1 HDD, PoE on), 16W (1 HDD, PoE off)
	PoE Budget	Max. 50W
Environmental	Operating Temperature	+0°C ~ +40°C (+32°F ~ +104°F)
Environmental	Operating Humidity	20% ~ 85% RH
Mechanical	Color / Material	Black / Metal
	Dimensions (WxHxD)	360.0 x 44.0 x 159.9mm (14.17" x 1.73" x 6.3") (1U)
	Weight	Approx. 1.6Kg (3.52lb), 1TB HDD 1ea included
