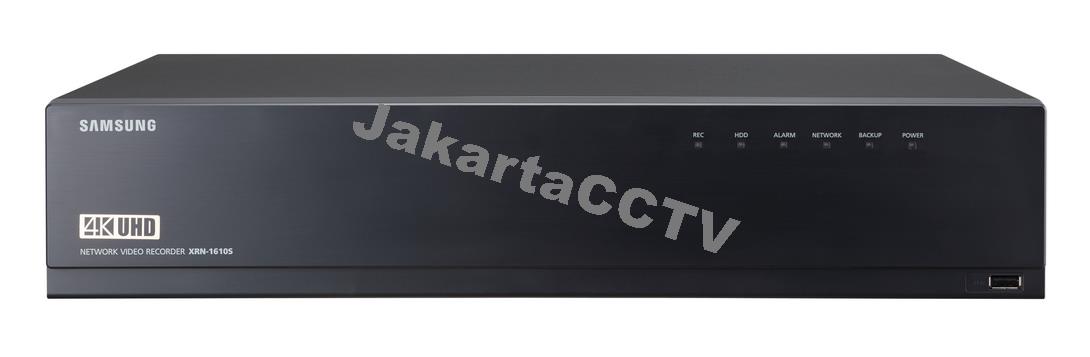

SAMSUNG XRN-1610P

tidak termasuk pengiriman

• Up to 16CH 12megapixel supported
• H.265, H.264, MJPEG codec supported
• WiseStream support
• 180Mbps network camera recording
• Max. 8HDDs, e-SATA storage supported
• HDMI / VGA local monitor

Qty:

Overview
Contact Us

Jual NVR murah, SAMSUNG HANWHA TECHWIN XRN-1610P yang bisa anda beli sekarang dari JakartaCCTV dengan harga yang terjangkau dan kompetitif. Network Video Recorder HANWHA XRN-1610SP ini mampu merekam video dengan resolusi hingga 12MP pada kecepatan 180Mbps dengan menerima input dari 16 saluran IP kamera. File yang direkam bisa diputar ulang dengan resolusi hingga 4K pada format HDMI. File tsb pun lalu bisa disimpan secara internal karena NVR ini dapat dipasang dengan 8 internal HDD atau diback up secara eksternal melalui eSATA Port yang tersedia pada NVR.

Untuk mengoptimasi fungsi penyimpanan, NVR ini juga mendukung teknologi WiseStream yang dapat mengkompress data hingga 75% untuk efisiensi penyimpanan dan bandwidth. Dan jika anda ingin menggabungkan NVR ini dengan kamera CCTV merek lainnya, maka anda tidak perlu khawatir karena NVR ini juga mematuhi standard ONVIF yang membuatnya cocok dengan banyak merek lainnya.

FITUR & FUNGSI SAMSUNG XRN-1610P

Up to 16CH 12megapixel supported
H.265, H.264, MJPEG codec supported
WiseStream support
180Mbps network camera recording
Max. 8HDDs, e-SATA storage supported
HDMI / VGA local monitor

Network Video Recorder SAMSUNG XRN-1610P ini hanya bisa anda dapatkan dengan harga distributor yang murah di JakartaCCTV, yang disertai dengan garansi resmi 2 tahun dari distributor HANWHA TECHWIN di Indonesia. Beli produk ini dari kami sekarang dan anda juga akan mendapatkan tips yang aman dan berguna dalam memilih dan membeli NVR SAMSUNG yang sesuai dengan kebutuhan anda. Selain itu kami juga menawarkan jasa pemasangan CCTV untuk setiap paket/produk CCTV yang kami jual. Jadi tunggu apa lagi ? Hubungi kami sekarang juga.

Display
Video	Inputs / Resolution	Up to 16CH / CIF ~ 12MP
Video	Protocols	Samsung, ONVIF
Live	Local Display	1x HDMI, 1x VGA dual monitor
	Multi Screen Display	[Local monitor] 1 / 2V / 3V / 4 / 6 / 8 / 9 / 13 / 16 / Auto sequence, [Web] 1 / 4 / 9 / 16 / Auto sequence
	Performance	[Local monitor] 12MP (30fps), 8MP (120fps), 5MP (180fps), 3MP (240fps), 2MP (480fps), 720p (480fps), D1 (480fps) [Web] 5MP (30fps), 3MP (60fps), 2MP (120fps), 720p (240fps), D1 (480fps)
Performance
Operating System	Embedded	Linux
Recording	Compression	H.265, H.264, MJPEG, WiseStream (H.265, H.264)
	Recording Bandwidth	180Mbps
	Resolution	CIF ~ 12MP
	Mode	Manual, Schedule (Continuous / Event), Event (Pre / Post)
	Event Trigger	Alarm input (8), Video loss, Camera event (Sensor, MD, Video analytics), VA event (Tampering, Enter / Exit, Passing, Virtual- line, (Dis)Appear, Face detection, Audio Detection), Defocus camera event
	Event Action	E-mail, PTZ preset, Alarm out, Buzzer, Monitor out
Search & Playback	Playback Bandwidth	32Mbps (16CH simultaneously)
	Performance	Max. 4 users (Set 1, Remote 3)
	Mode	Date & Time (Calendar) / Event log list / Text search (POS, ANPR)
	Simultaneous Playback	Max. 16CH (Local monitor, Network)
	Resolution	CIF ~ 12MP
	Fish-eye Dewarping	Processed on Web / CMS
	Playback Control	Fast/Slow Forward/Backward, Move one step up/down
Storage	Default Built-in	0TB ~ 6TB
Storage	Internal / External	8 SATA (Max. 48TB) / 1 e-SATA, iSCSI (Max. 384TB * PROMISE VESSRAID R2600)
Backup	File Backup	BU/EXE (GUI), JPG/AVI (Network)
Backup	Function	Max. 16CH play, Date-time/title display
Sensor	Input / Output	8 / 4 (NO/NC selectable)
Audio	Input / Compression	16CH (Network) / G.711, G.726, AAC (16/48KHz)
Audio	Audio Communication	2-way (Pass-through between camera and SSM)
Network
Protocol Support		TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI (Server, Client)
DDNS		iPOLiS DDNS
Transmission Bandwidth		Max. 256Mbps (iSCSI off ) (128Mbps, iSCSI on)
Max. Remote Users		Search 3 / Live unicast 10 / Live multicast 20
IP		IPv4 / IPv6
Security		IP address filtering, User access log, 802.1x authentication, Encryption (ID/PW, Recording, Transmission, Backup)
Language	GUI / Web	English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai (GUI)
OS		Supported OS : Window XP (Service pack 2 or above), Vista, 7, 8, 10, Mac OS X (10.7 or above)
Web Browser		Plug-in free Webviewer - Supported Browser : Google Chrome 47, MS Edge 20 - WMF : 1CH live (800 x 600), Setup Plug-in Webviewer - Supported Browser : MS Explore 11, Mozilla Firefox 43 , Apple Safari 9 * Mac OS X only
Viewer Software	Type	SSM, Webviewer, SmartViewer, iPOLiS mobile viewer
Viewer Software	CMS Support	SDK / CGI (SUNAPI)
Functions
Camera Setup	Register	Auto mode, Manual mode
Camera Setup	Setup Items	1) IP address, Add profile edit, Bitrate, Compression, GOP, Quality 2) Camera event setup - MD, VA : Tampering, Enter / Exit, Passing (Virtual- line), (Dis)Appear, Face detection, Audio detection) 3) Video setup (Simple focus, Brightness / Contrast, Flip / Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS) 4) Fisheye dewarping, Hallway view setup, Camera webpage
Easy Configuration		Setup Wizard (Language Date/Time, Network, Auto camera configuration)
ARB (Auto Recovery Backup)		Yes
PTZ	Control / Preset	Via GUI, Webviewer, SPC-2000 (USB) / 255 presets
Smart Phone	OS	Android, iOS
	Protocol Support	RTP, RTSP, HTTP, CGI (SUNAPI)
	Control	Live (16CH) : Multi-profile support, Playback (1CH, Max. 2MP)
	Max. Remote Users	Search 3 / Live unicast 10 / Live multicast 20
System Control		Mouse, IR Remocon, Web, SPC-2000 (USB)
Indicator / Interface
Front	Indicator	Power status LED 1ea, HDD action LED 1ea, Alarm status LED 1ea Record status LED 1ea, Network action LED 1ea, Backup LED 1ea
Front	USB	2ea (Front 1ea / Rear 1ea)
Connections	HDMI	Main : 1ea (Both support Live / PB / Setup) Support up to 4K (3840 x 2160, Single monitor mode)
	VGA	Sub : 1ea (Support live screen up to 16 div. mode)
	Audio / Serial	Out 1ea (RCA, Line) / 1ea for UPS (Plan to support as project basis)
	Ethernet	2ea (LAN/WAN, 1Gbps) - LAN : Downlink to camera / PoE (PoE+) Hub - WAN : Uplink to CMS
	Alarm	In 8ea (Terminal block) / Out 4ea (Terminal block)
	Reset / Power Cord	Yes (Factory reset, Alarm reset) / Included
System
Log	Log List	Max. 20,000 (System log, Event log each)
General
Electrical	Input Voltage / Current	100 ~ 240V AC
Electrical	Power Consumption	Max. 76.3W (8 HDDs)
Environmental	Operating Temperature	+0°C ~ +40°C (+32°F ~ +104°F)
Environmental	Operating Humidity	20% ~ 85% RH
Mechanical	Color / Material	Black / Metal
	Dimensions (WxHxD)	440.0 x 88.0 x 384.8mm (17.32" x 3.46" x 15.15") (2U)
	Weight	5.44Kg (11.99 lb)
