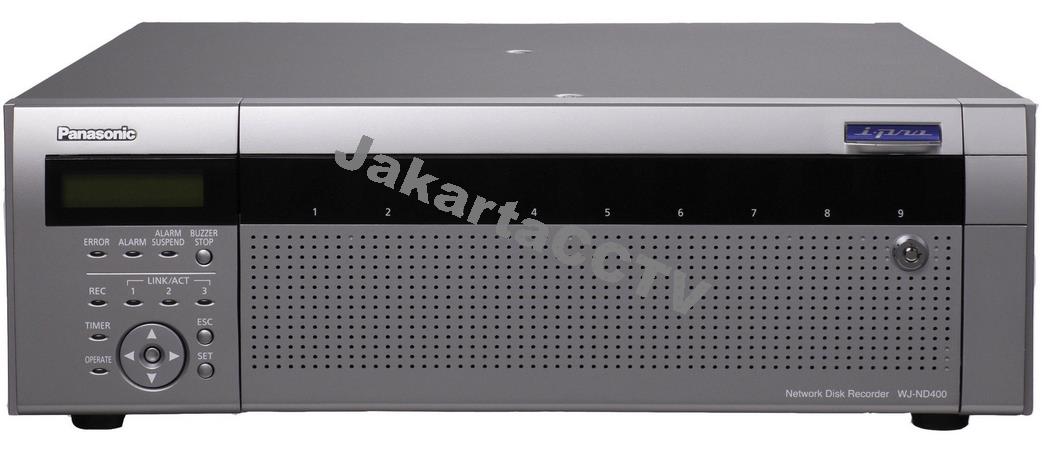

| Supported Cameras |
Panasonic i-Pro series Network cameras (Contact Panasonic for BB series and Axis® cameras) |
| Supported Image Format |
MPEG-4, JPEG, M-JPEG |
| Supported Image Resolution |
1,280 x 960, 960 x 720, 640 x 480, 320 x 240 (Depending on the camera) |
| Supported Audio Format |
G.726 (ADPCM) 32 kbps |
| Maximum Number of Cameras |
64 |
| Recording |
Recording Mode |
Manual, Schedule including Event (Pre/Post), Emergency |
| Pre-Event Recording |
Up to 15 minutes with dedicated HDD for Pre-Event.
Shorter Pre-Event recording is possible without dedicated HDD. |
| Scheduled Recording Mode |
8 programs, 6 time zones/day, Independent setup for each day of the week |
| Frame Rate/Camera |
Up to 30 ips (Depending on the Camera) |
| Browser GUI |
Camera Control |
Pan/Tilt, Zoom, Focus, Brightness, Preset position call and program (up to 256), Auto mode |
| REC/Playback Control |
REC, PLAY, Rev PLAY, Pause, Stop, FF, REW, Prev Record, Next Record, Prev Image, Next image, Goto Date, Goto Last (5 sec. ~ 5 min.), Area select |
| Search Mode |
Filtered search: Time date, Event type, Camera number
VMD search: one detection areas per search (works with supported i-Pro cameras and WJ-NT314) |
| Display Mode |
Spot/Quad (16 patterns) / Spot Sequence / Quad Sequence (Sequence: Live only) |
| Camera Grouping |
8 groups each with 16 characters title |
| Image Download |
Recorded data of selected camera and time range can be downloaded to a PC. Viewer software can be downloaded separately. |
| SD Memory Data Download |
Images recorded in the SD card in the i-Pro series cameras can be transferred to the recorder automatically. |
| Copy |
Recorded data of selected cameras and time date range can be copied to the COPY partition. |
| Camera Title |
On the browser, Up to 16 Characters |
| Clock Display |
On the browser. Time: 12 H/24 H, Date: 3 formats (YY.MM.DD, MMM.DD.YY, DD.MMM.YY) |
| Alarm Control |
Reset, Suspend |
| Digital Zoom |
2x, 4x |
| System Log |
Operator access (100), Network error (1,000), Error (100), Event (750) |
| System Setup |
Setup page in English, French, Italian, Spanish, German, Russian, Chinese, Japanese |
| GUI Language |
English, French, Italian, Spanish, German, Russian, Chinese, Japanese |
| Supported OS |
Microsoft® Windows Vista® Bussiness 32 bit
Microsoft® Windows® XP Home Edition SP2 Microsoft® Windows® XP Professional SP2
The language of the OS must be same as selected GUI language. |
| Supported Browser |
Windows® Internet Explorer® 7.0 Microsoft® Internet Explorer® 6.0 SP2 |
| Alarm / Event |
Alarm Source |
32x Terminal inputs, 64x Camera alarms, Panasonic Alarm Protocol |
| Event Mode |
Alarm / Activity / OFF |
| Alarm Action |
Alarm recording, e-mail notification, Alarm message, Camera positioning, FTP image transfer, Terminal output, Panasonic alarm protocol output, Buzzer, LED |
| Alarm Control |
Reset, Suspend |
| Event log |
750 |
| Network |
Network Interface |
Camera port: 10Base-T / 100Base-TX / 1000Base-T (RJ-45) Client port: 10Base-T / 100Base-TX / 1000Base-T (RJ-45) Maintenance port: 10Base-T (RJ-45) |
| Maximum Band Width |
Total 200 Mbps |
| Bandwidth Control (Client Port) |
32 K / 64 k / 128 k / 256 k / 512 k / 1,024 k / 2 M / 5 M / 10 M (bps) and unlimited |
| Supported Protocol |
TCP/IP, UDP/IP, HTTP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, RTP |
| E-mail |
Upon Alarm or Warning |
| FTP Client |
Upon alarm or Periodic transfer |
| No. of Simultaneous Users |
16 |
| User Registration |
Up to 32 users |
| User level |
4 Levels (Programmable) |
| Partitioning |
User - Camera (View only, View & Control, No Access) |
| Security Method |
User authentication (ID and password), Host authentication (IP address), Alteration detection, HTTP Port No. (1 ~ 65,535 except for reserved numbers), FTP Port No. (1 ~ 65,535 except for reserved numbers) |
| External Interface |
Alarm Connector (D-sub25 pin) |
Alarm input 1 ~ 7, 17 ~ 32*1 |
| Alarm/Control Connector (D-sub25 pin) |
Alarm input 8 ~ 16*1, 1x Alarm output*2, 1x Alarm reset input*1, 1x Alarm suspend input*1 |
| Control : Emergency recording input*1, Power outage detection input*1, External recording mode switching*1, Power outage recovery completion output*3, Time adjustment input/output*4, +5 V output*5 |
| Error/Warning : Network error output*2, Available disk space warning output*2, HDD error output*2, Camera error output*2, Error output*2 |
| EXT Storage |
High-speed serial interface 1.5 Gbps (theoretical value) Only for WJ-HDE400 Extension Unit |
| Other Functions |
Time Synchronization |
Terminal (Master or Slave), NTP (Server/Client) |
| Summer Time |
User definable (using menu setup) |
| HDD |
Type |
1x 8.89 cm 500 GB Serial ATA HDD (Factory default), Up to 9x HDDs can be installed. |
| Maximum Capacity |
54 HDD slots (with 5x WJ-HDE400 Extension Units, 9x HDDs installed in each unit) |
| RAID |
RAID 5/6 supported |
| Partitioning |
Normal / Event / Pre-Event / Copy |
| Viewer Software |
Playback Control |
Play, Rev Play, Pause, FF, REW, Prev Record, Next Record, Prev Image, Next image |
| Additional Functions |
Alteration detection, Save as JPEG, Two times zoom, Print |
| Supported OS, Language |
Same as browser GUI, Language of the software will be English |
| General |
Safety/EMC Standard |
CE (EN60065, EN55022 ClassB, EN55024), C-Tick |
| Power Source |
220 ~ 240 AC, 50 Hz |
| Power Consumption |
approx. 170 W |
| Ambient Operating Temperature |
+5 °C ~ +45 °C (41 °F ~ 113 °F) |
| Ambient Operating Humidity |
5 % ~ 90 % (no condensation) |
| Maximum Operating Altitude |
2,000 m (6,500 feet) above sea level |
| Dimensions |
43.0 cm (W) x 13.2 cm (H) x 40.0 cm (D)
(excluding rubber feet and projections) |
| Weight |
14 kg (30.9 lbs.) with 1 HDD (Factory default) 20 kg (44.15 lbs.) with 9 HDDs |
| Note |
* Non-voltage make contact, +5 V pull-up 150 Ω
* Open collector output, 24 V max., –100 mA
* High (+5 V ~ +12 V, 6.3 mA maximum)
* 52 kΩ, 5 V pull-up, –100 mA / make contact
* 200 mA at maximum
* Weights and dimensions are approximate.
* Specifications are subject to change without notice. |
