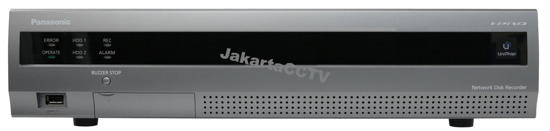

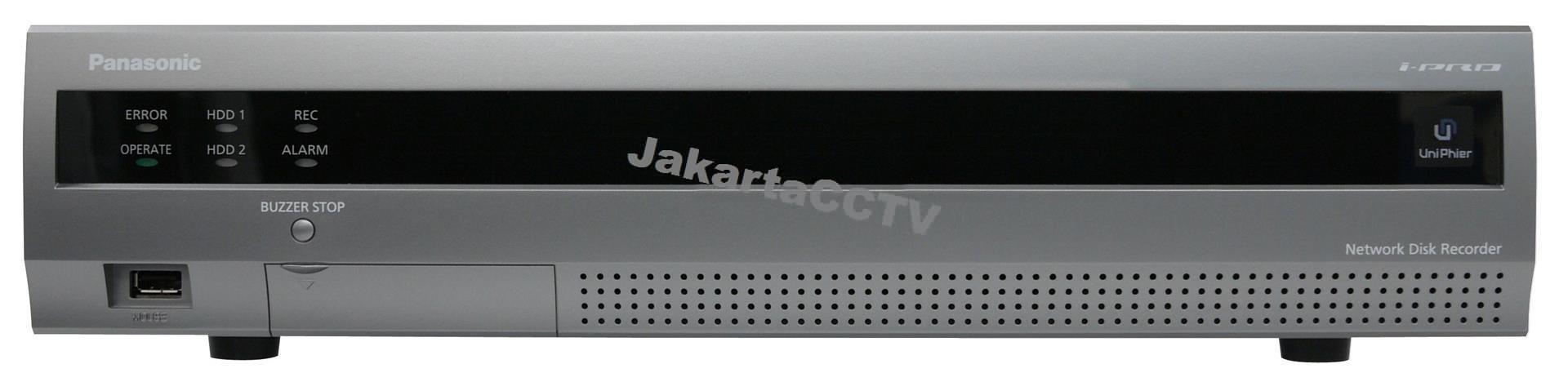

Supported Cameras
|
Supported Cameras |
Panasonic i-PRO series Network cameras Onvif NVT comformant camera and encoder camera |
| Supported Image Format |
H.264, MPEG-4, MJPEG |
| Supported Image Resolution |
Aspect ratio [4:3] : SXVGA (1,280 x 960), SVGA (800 x 600), VGA(640 x 480), QVGA (320 x 240)
Aspect ratio [16:9]:1,920 x 1,080, 1,280 x 720, 640 x 360, 320 x 180) * Depending on the camera |
| Supported Audio Format |
G.726 (ADPCM) 32 kbps |
| Maximum Number of Cameras |
16 |
|
Recording
|
Recording Mode |
Event, Schedule |
| Pre-alarm Recording |
Up to 15 seconds (Up to 10 seconds at 1,920 x 1080 resolution) |
| Scheduled Recording Mode |
2 programs, 3 time zones/day, Independent setup for each day of the week |
| Frame Rate/Camera |
Up to 30 ips (Depending on the Camera) |
|
Main Unit Functions
|
Camera Control |
Pan/Tilt, Zoom, Focus, Brightness, Preset position call and program (up to 256), Auto mode, Click centering, Wheel zoom, Zoom reset, Auto Back Focus |
| Multiscreen Mode |
4 / 16 split screen display, 3 / 4 / 6 / 9 / 12 / 16 split screen display on a full screen |
| Playback Control |
PLAY, Rev PLAY, Pause, Stop, FF, FR, Prev Record, Next Record, Prev Image, Next Image, Goto Date, Goto Last (30 s) |
| Search Mode |
Search criteria: Time date, Playback by designating a timeline, VMD |
| Copy |
Recorded data of selected cameras and time date range can be copied to the SD (SDHC) card. |
| Camera Title |
Up to 14 characters |
| Clock Display |
Time: 12H/24H, Date: 5 formats |
| Digital Zoom |
Live: 2x, 4x, 8x (only for 1-screen or 4-screen) Play: 2x, 4x, 8x |
| System Log |
Operator access (100), Network error (100), Error (1,000), Event (750) |
| System Setup |
Setup page in English, French, Italian, Spanish, German, Russian, Japanese |
|
Browser GUI
|
Camera Control |
Pan/Tilt, Zoom, Focus, Brightness, Preset position call and program (up to 256), Auto mode, Click centering, Wheel zoom, Zoom reset |
| Playback Control |
REC, PLAY, Rev PLAY, Pause, Stop, FF, FR, Prev Record, Next Record, Prev Image, Next Image, Goto Date, Goto Last (30 s) |
| Search Mode |
Search criteria: Time date, Event type, VMD, Camera number |
| Display Mode |
1 / 4 screen |
| Image Download |
Recorded data of selected camera and time range can be downloaded to a PC. Viewer software can be downloaded separately. |
| Copy |
Recorded data of selected cameras and time date range can be copied to the SD (SDHC) card. |
| Camera Title |
Up to 14 characters |
| Clock Display |
On the browser. Time: 12H/24H, Date: 5 formats |
| Digital Zoom |
Live/Play: 2x, 4x (only for 1-screen) |
| System Log |
Operator access (100), Network error (100), Error (1,000), Event (750) |
| GUI Language |
English, French, Italian, Spanish, German, Russian, Japanese |
| Supported OS and Browser Combination |
Microsoft®Windows®7 Professional 64 bit/32 bit & Windows®Internet Explorer®8.0, Microsoft®Windows Vista®Business SP1 32 bit & Windows®Internet Explorer®7.0 The language of OS must be the same as selected GUI language. |
| Required PC (for MJPEG/MPEG-4) |
VRAM: 128 MB or more (Min. 64 MB), Microsoft®DirectX®9.0c or later |
| Required PC (for H.264) |
CPU: Intel®Core™ i7-920 or faster, RAM: 3 GB or more,
VRAM: 128 MB or more (Min. 64 MB), Microsoft®DirectX®9.0c or later |
|
Alarm/ Event
|
Alarm Source |
9x Terminal inputs, 16x Camera alarms, Panasonic Alarm Protocol |
| Face Matching |
Off / On |
| Event Mode |
Off / On |
| Alarm Action |
Alarm recording, e-mail notification, Alarm message, Camera positioning, Terminal output, Panasonic alarm protocol output, Buzzer, Indicator |
| Alarm Control |
Reset |
| Event Log |
750 |
|
Input / Output
|
Spot Output Connector |
1x 1 V [p-p] / 75 Ω (BNC) |
| Monitor (HDMI) Connector |
1x HDMI |
| Audio Output Connector |
1x −10 dBv, 600 Ω, Unbalanced (RCA) |
| Alarm/Control Connector (25pin D-sub) - Alarm |
Alarm input 1 ~ 9*1 , Alarm output*2 , Alarm reset input*1 , Face matching output*2 |
| Alarm/Control Connector (25pin D-sub) - Control |
Time adjustment input*1 , +5 V output*3 |
| Alarm/Control Connector (25pin D-sub) - Error/Warning |
Network error output*2 , HDD error output*2 , Camera error output*2 , Recorder error output*2 , Recording error output*2 |
| Mouse Connection Port |
1x |
| Network Port |
1x 10BASE-T / 100BASE-TX / 1000BASE-T (RJ-45) |
| SDHC/SD Memory Card Slot |
SDHC/SD memory cards applicable (miniSD cards and microSD cards not applicable) |
|
Network
|
Maximum Bandwidth |
Total 80 Mbps or less |
| Supported Protocol |
TCP/IP, UDP/IP, HTTP, FTP, SMTP, DNS, NTP, SNMP, RTP |
| E-mail |
Upon Alarm or Warning |
| No. of Simultaneous Users |
4 or less |
| User Registration |
Up to 16 users |
| User Level |
3 Levels (Programmable) |
| Partitioning |
User level - Camera (View & Control, No Access) |
| Security Method |
User authentication (ID and Password), Alteration detection |
|
Other Functions
|
Time Synchronization |
Terminal (Slave), NTP (Server/Client) |
| Summer Time |
User definable (using menu setup) |
| HDD |
Type |
8.89 cm Serial ATA HDD, Up to 2x HDDs can be installed. |
|
Viewer Software
|
Playback Control |
Play, Rev Play, Pause, FF, FR, Prev Record, Next Record, Prev Image, Next Image |
| Additional Functions |
Alteration detection, Save as JPEG, Two times zoom, Print, Copy |
| Supported OS, Language |
Same as browser GUI, Language of the software will be English |
|
General Specifications
|
Safety/EMC Standard |
CE (EN60065, EN55022 ClassB, EN55024), GOST (GOST R 51558) |
| Power Source |
220 ~ 240 V AC, 50 Hz/60 Hz |
| Power Consumption |
approx. 45 W |
| Ambient Operating Temperature |
Main body: +5 °C ~ +45 °C (41 °F ~ 113 °F)
Mouse (provided): +5 °C ~ +40 °C (41 °F ~ 104 °F) |
| Ambient Operating Humidity |
5 % ~ 90 % (without condensation) |
| Maximum Operating Altitude |
2,000 m (6,562 feet) above sea level |
| Dimensions |
42.0 cm (W) x 8.8 cm (H) x 30.0 cm (D) (excluding rubber feet and projections) |
| Mass (approx.) |
4.8 kg (10.6 lbs.) without HDD
5.6 kg (12.36 lbs.) with 1 HDD
6.4 kg (14.13 lbs.) with 2 HDDs |
|
Note
|
*1: Non-voltage make contact input, 50 kΩ +5 V DC pull-up
*2: Open collector output, 24 V DC, 100 mA max.
*3: 200 mA max. |
