| Server |
| Image compression |
: |
JPEG (3 levels), MPEG-4, H.264 |
| Video resolution |
: |
1280 x 960, 640 x 480, 320 x 240, 192 x 144*1 |
| Image quality |
: |
JPEG (favor clarity, standard, favor motion), MPEG-4, H.264 |
| Frame rate |
: |
Max. 30 frames/second (640 x 480, 320 x 240, 192 x 144)*2 |
| Security |
: |
User ID / Password, SSL |
| Supported protocols |
: |
IPv4/IPv6 Dual-Stack IPv4: TCP, UDP, IP, HTTP, FTP, SMTP, DHCP, DNS, ARP, ICMP, POP3, NTP, UPnP™, SMTP Authentication, RTP, RTSP*3, RTCP, HTTPS, SSL, TLS IPv6: TCP, UDP, IP, HTTP, FTP, SMTP, DNS, ICMPv6, POP3, NDP, NTP, RTP, RTSP*3, RTCP, HTTPS, SSL, TLS |
| User access limit |
: |
Max. 30 simultaneous accesses (max. 10 accesses with voice reception) |
| Buffered images |
: |
About 1160 frames (320 x 240, standard image quality) with time display (when SD memory card is not inserted) *3 |
| Image transfer method |
: |
SMTP*4, FTP, HTTP |
| Image buffer/transfer triggers |
: |
Alarm, timer, Motion Detection, Sound or Shock |

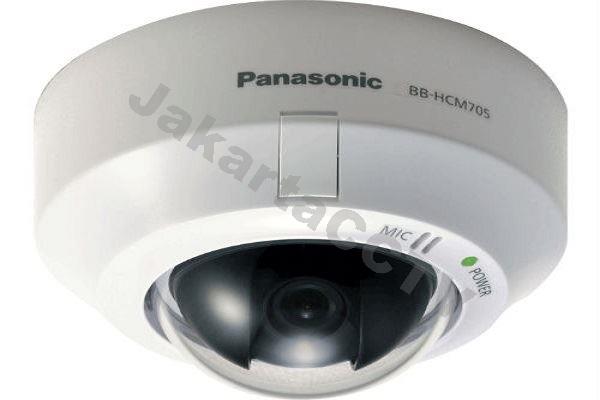

Network Camera |
| Zoom |
: |
6 x zoom (2 x Ex zoom, 3 x digital zoom) |
| Viewing angle |
: |
Horizontal: 69°, vertical: 51° |
| Pan (horizontal direction) |
: |
Pan: -10° to +10° (ceiling mount); -52° to +52° (wall mount) |
| Tilt (vertical direction) |
: |
Tilt: -57° to 0° (ceiling mount); - 57° to + 57° (wall mount) |
| Sensor type |
: |
MOS sensor, 1.3 million pixels |
| Lens focal point |
: |
Fixed 0.5 m-infinity |
| Lens brightness |
: |
F2.4 |
| Required light intensity |
: |
At 640 x 480: 0.3 to 100,000 lux (in Color Night View mode: 0.04 to 100,000 lux) At 1280 x 960: 0.6 to 100,000 lux (in Color Night View mode: 0.07 to 100,000 lux) Screen brightness, white balance: automatic/manual setting |
Audio |
| Audio communication |
: |
Camera to PC |
| Audio compression |
: |
H.264: MPEG-2 AAC (AAC-LC) 64 Kbps, MPEG-4/MJPEG: ADPCM 32 kbps |
| Audio bandwidth |
: |
300 Hz-3.4 kHz |
| Audio input |
: |
Built-in microphone |
Wireless |
Not Available
Terminal |
| Network interface |
: |
10Base-T/100Base-TX Ethernet RJ-45 connector x 1 |
| External I/O connector |
: |
External sensor input x 1 |
| SD Memory Card slot |
: |
Full size |
General |
| Operating temperature |
: |
Operation: 0°C to +40°C (+32°F to +104°F ) Storage: -10°C to +50°C(+14°F to +122°F) |
| Operating humidity |
: |
Operation: 20 % to 80 % (No Condensation) Storage: 20 % to 90 % (No Condensation) |
| Dimensions (H x W x D) |
: |
111mm x 111mm x 73 mm (4 3/8 inchesx 4 3/8 inches x 27/8 inches) |
| Weight (only the unit) |
: |
250g (0.55 lb.) |
| Power supply (CE) |
: |
PoE standard IEEE 802.3af-2003 / Operation AC adaptor(Model No. BB-HCA7E) input 100 - 240 V AC, 50/60 Hz Output 12V DC, 750 mA |
| Consumption |
: |
When Using an Optional AC adaptor(Model No. BB-HCA7E) About 3.3 W (Max. 3.9 W) |
| |
| Other Detail |
: |
System Requirements for your PC
Your PC (Personal Computer) and network must meet the following technical specifications for the camera to work properly.
Operating system:
1. For IPv4 Connection
Microsoft® Windows Vista®
Microsoft® Windows® XP
Microsoft® Windows® 2000
2. For IPv6 Connection
Microsoft® Windows Vista®
Microsoft® Windows® XP Service Pack 1 or later
CPU: 2.0 GHz Celeron® or faster
Display: 1024 x 768 resolution or higher
Protocol:
1. For IPv4 Connection
TCP/IP protocol (HTTP, TCP, UDP, IP, DNS, ARP,ICMP)
2. For IPv6 Connection
TCP/IP protocol (HTTP, TCP, UDP, IP, DNS, ICMPv6, NDP)
Interface: 10/100 Mbps network card
Web browser: Internet Explorer® 6.0 or later (not included)
Audio: PC speaker or headphones (required to use the Listen feature)
External speaker for camera (required to use the Talk feature)
Additional software (for viewing buffered MPEG-4 images):
For Windows Vista® - Windows Media® Player 11 or later
For Windows® XP - Windows Media® Player 9 or later
For Windows® 2000 - Windows Media® Player 9 |
