| Server |
| Image compression |
: |
JPEG (Motion JPEG), MPEG-4 |
| Video resolution |
: |
640 x 480, 320 x 240 (default), 192 x 144 |
| Image quality |
: |
JPEG (favor clarity, standard, favor motion), MPEG4 |
| Frame rate |
: |
Max. 30 frames/sec. (640 x 480, 320 x 240, 192 x144) |
| Security |
: |
User ID/Password |
| Supported protocols |
: |
IPv4/IPv6 Dual-Stack IPv4: TCP, UDP, IP, HTTP, FTP, SMTP, DHCP, DNS, ARP, ICMP, POP3, NTP, UPnPTM, SMTP Authentication, RTP, RTSP, RTCP IPv6: TCP, UDP, IP, HTTP, FTP, SMTP, DNS, ICMPv6, POP3, NDP, NTP, RTP, RTSP, RTCP |
| User access limit |
: |
Max. 30 simultaneous accesses |
| Buffered images |
: |
Approx. 350 images (320 x 240) •standard image quality •with time display •without using SD Memory Card |
| Image transfer method |
: |
SMTP, FTP, HTTP |
| Image buffer/transfer triggers |
: |
Alarm, timer or motion detection |

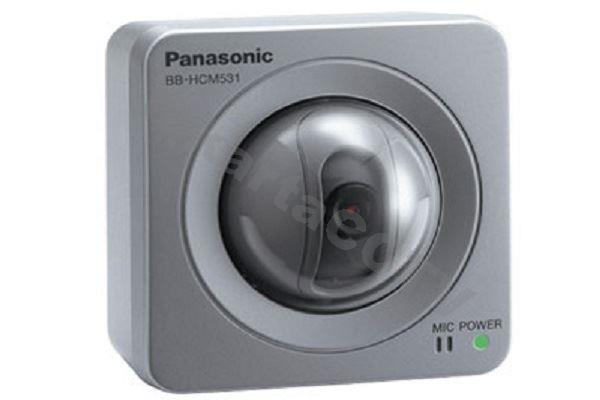

Network Camera |
| Zoom |
: |
10x digital zoom (by area) |
| Viewing angle |
: |
Horizontal: 54° (total 174°), vertical: 40° (total 105°) |
| Pan (horizontal direction) |
: |
-60° to +60° |
| Tilt (vertical direction) |
: |
-45° up to +20° |
| Revolving speed |
: |
Pan: Max. 80°/sec Tilt: Max. 80°/sec |
| Sensor type |
: |
1/4 inch CCD sensor, approx. 320,000 pixels |
| Lens focal point |
: |
Fixed (focal range: 0.5 m to ∞) |
| Lens brightness |
: |
F2.8 |
| Required light intensity |
: |
2 to 100,000 lux (in color night view mode: 0.2 to 100,000 lux) |
Audio |
| Audio communication |
: |
2-Way half duplex |
| Audio compression |
: |
ADPCM 32 kbps |
| Audio bandwidth |
: |
300 Hz - 3.4 kHz |
| Audio input |
: |
Built-in microphone or external microphone input terminal |
| Audio output |
: |
Audio line output terminal for external speaker |
Wireless |
| Standards |
: |
— |
| Antenna |
: |
— |
| Number of channel |
: |
— |
| Transmission speed |
: |
— |
| Security |
: |
— |
Terminal |
| Network interface |
: |
Ethernet (10Base-T/100Base-TX) |
| External I/O connector |
: |
Input: 2, output: 1 |
| Video output |
: |
Analog composite (NTSC/PAL) |
| Audio output |
: |
3.5 mm stereo mini jack (output is mono) |
| External Microphone Input |
: |
3.5 mm mini jack |
| SD Memory Card slot |
: |
Full size (operation guaranteed for 2GB, 1GB, 512MB, 256MB, 128MB and 64MB SD Memory Cards) |
General |
| Operating temperature |
: |
-20°C to +50°C (-4°F to +122°F) |
| Operating humidity |
: |
20% to 90% (No Condensation) |
| Dimensions (H x W x D) |
: |
100 x 100 x 74 mm (3 15/16 x 3 5/16 x 2 15/16 inches) |
| Weight (only the unit) |
: |
335 g (0.74 lb) |
| Power supply (E) |
: |
PoE: 48 V, IEEEE 802.3af-compliant Power over Ethernet AC adaptor (option): input 100 - 240 V AC, output 12 V DC |
| Power supply (CE) |
: |
PoE: 48 V, IEEEE 802.3af-compliant Power over Ethernet AC adaptor (option): input 100 - 240 V AC, output 12 V DC |
| Power supply(US) |
: |
PoE: 48 V, IEEEE 802.3af-compliant Power over Ethernet AC adaptor (option): input 120 V AC, output 12 V DC |
| Consumption |
: |
PoE: approx. 6.5 W. AC adaptor: 7 W |
