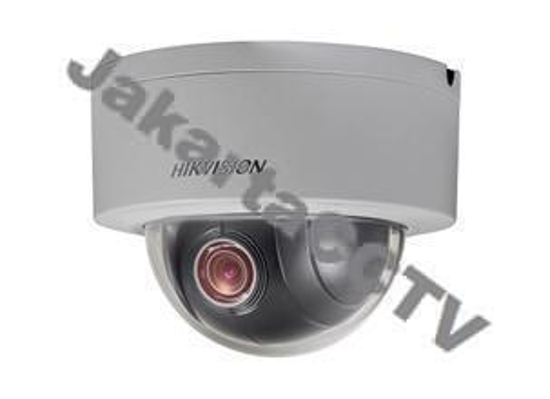

    Hikvision DS-2DE2204IW-DE

    Hikvision DS-2DE2204IW-DE 3MP Network Mini PTZ Camera 1/2.8” Progressive Scan CMOS 2048 x 1536P 4X Optical Zoom DWDR Support IP67/IK10 Support PoE(802.3af) Support RS485 Support plug & play

    Hikvision DS-2DE2204IW-DE

    3MP Network Mini PTZ Camera

    Jual HIKVISION DS-2DE2204IW-DE Dome Network Kamera dengan harga yang murah dan terjangkau. Kamera dome ini memiliki spesifikasi 1/2.8" Progressive Scan CMOS dengan resolusi sampai 2048 x 1536P. Dengan kemampuan hingga 4X Optical Zoom dan 16x Digital Zoom, dilengkapi suport IP67/IK10, PoE(802.3af), RS485 dan plug & play. Kamera speed dome ini sendiri khusus untuk outdoor, mempunyai angle view 105~33.5 degree (Wide~Tele)

    Camera

    Image Sensor:

    1/2.8" Progressive Scan CMOS

    Effective Pixels:

    2048(H)x1536(V)

    Minimum Illumination:

    F1.6, AGC On : Color : 0.05 lux, B/W : 0.01 lux

    White Balance:

    Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp

    AGC:

    Auto/Manual

    BLC:

    ON/OFF

    HLC:

    Support

    WDR:

    Support

    Shutter Time:

    1/1~1/10,000s

    Day& Night:

    ICR

    Digital Zoom:

    16X

    Privacy Masking:

    8 privacy masks programmable

    Auto Focus:

    Auto / Semi-automatic / Manual



    Lens

    Focal Length:

    2.8~12mm, 4x

    Zoom Speed:

    Approx.1s(Wide~Tele)

    Angle of View:

    105~33.5 degree (Wide~Tele)

    Aperture Range:

    F1.6 ~F2.7



    Pan and Tilt

    Range:

    0~350°

    Speed:

    Pan Manual Speed: 0.1°~60°/s

    Tilt Range:

    0°~90°

    Tilt Speed:

    0.1°~50°/s

    Proportional Zoom:

    Rotation speed can be adjusted automatically according to zoom multiples

    Number of Preset:

    300

    Power loss recovery:

    Support

    Park Action:

    Preset

    PTZ Position Display:

    ON/OFF



    Alarm

    Alarm Input:

    1

    Alarm Output:

    1

    Alarm Actions:

    Preset, Recording, Relay output, Upload center, Upload FTP, Email linkage



    Input & Output

    Audio Input:

    1 Mic in/Line in interface
    Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%

    Audio Output:

    1 Audio output interface
    Line level, impedance: 600Ω



    Network

    Ethernet:

    10Base -T, /100Base-TX, RJ45 Connector

    Max.Image Resolution:

    2048 x 1536

    Main Stream:

    50Hz:25fps (1920×1080,1280×960,1280×720), 50fps (1280×960,1280×720) ;
    60Hz:30fps(1920×1080,1280×960,1280×720), 60fps (1280×960,1280×720)

    Sub Stream:

    50Hz:25fps(704×576), 25fps(640×576), 25fps(320×288)
    60Hz:30fps(704×480), 30fps(640×480), 30fps(320×240)

    Third Stream:

    50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480, 320 × 288)
    60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480, 320 × 240)

    Image Compression:

    H.264 / MJPEG

    ROI encoding:

    Support 4 areas with adjustable levels

    Audio Compression:

    G.711ulaw/G.711alaw/G.726/MP2L2/G.722

    Protocols:

    IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP,IGMP, ICMP, DHCP, PPPoE

    No. of Simultaneous Users:

    Up to 20 users

    Dual Stream:

    Support

    Mini SD Card:

    Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording

    User/Host Level:

    Up to 32 users,3 Levels: Administrator, Operator and User

    Security Measures:

    User authentication (ID and PW),
    Host authentication (MAC address)
    IP address filtering

    EZVIZ:

    Support



    Client GUI

    Date & Time Display:

    Time: Week: Date, 6 formats on the Client

    Client:

    Support iVMS-4200

    Web Browser:

    IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +



    General

    Menu Language:

    English

    Power Supply:

    12V DC or PoE((802.3af, class3)

    Power Consumption:

    Max. 8W

    Working Temp/Humidity:

    -30°C ~ 65°C (-22°F ~ 149°F)

    Protection Level:

    IP66 standard (outdoor dome)
    TVS 4,000V lightning protection, surge protection and voltage transient protection

    Mounting:

    Various mounting modes optional

    Dimensions:

    Φ140.7×107.2mm

    Weight (approx.):

    950g

    Mount Option:

    Wall mount: DS-1273ZJ -PT6; In-ceiling Mount: 1227ZJ-PT6; Junction Box: DS-1280ZJ -PT6
