    Brand: CP Plus

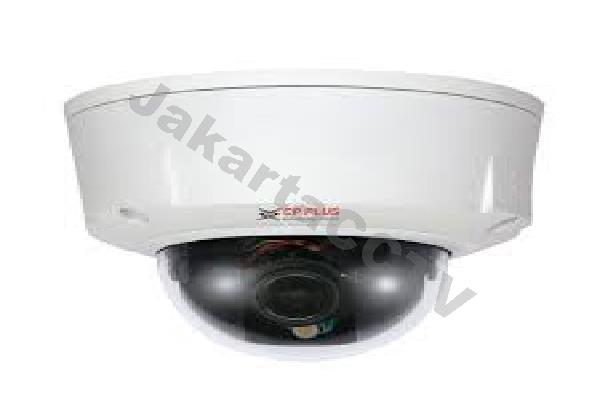

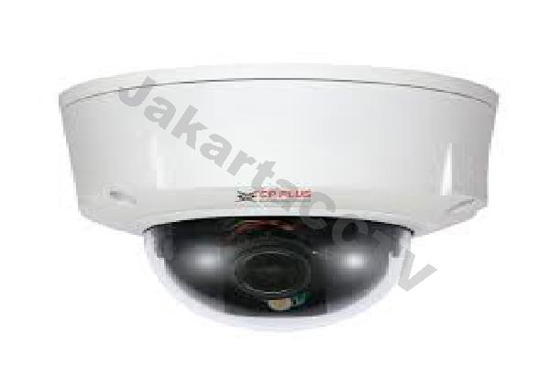

    CP Plus CP-UNC-VY20ZC

    Rp 13.000.000
    tidak termasuk pengiriman
    1/3” 2Megapixel progressive scan Exmor CMOS
    H.264 & MJPEG dual-stream encoding
    25/30fps@1080P(1920×1080)
    DWDR, Day/Night(ICR), 2DNR, Auto iris, AWB, AGC, BLC
    3~9mm varifocal motorized lens
    Supports PoE
    Built-in 1/1 alarm in/out
    Micro SD memory, IP66, IK10, PoE
    Mobile Software: CMOB
    CMS Software: IPSS

    Specification :



    • Image Sensor
      1/3” 2Megapixel Exmor CMOS

    • Minimum Illumination
      Color: 0. 1Lux/F1.2, B/W: 0.01Lux/F1.2

    • Shutter Speed
      Auto/Manual 1/3~1/10000

    • White Balance
      Auto

    • AGC control
      Auto/Manual

    • Back Light Comp.
      BLC / HLC / DWDR

    • Lens
      3~9mm varifocal motorized lens

    • S/N Ratio
      more than 50 dB

    • Video Compression
      H.264/MJPEG

    • Video Streaming
      Main Stream: 1080P/720P(1 ~ 25/30fps), Sub Stream: D1/CIF(1 ~ 25/30fps)

    • Resolution
      1.3M(1280×960) / 720P(1280×720) / D1(704×576/704×480)/ CIF(352×288)

    • Video Output
      1 channel BNC(1.0Vp-p, 75Ω)

    • Privacy Masking
      Up to 4 areas

    • ICR
      Auto(ICR) / Color / B/W

    • Smart Phone
      iPhone, iPad, Android, Windows Phone

    • Audio Input
      1 Channel

    • Audio Output
      1 Channel

    • Audio Compression
      G.711a / G.711u(64kbps) / PCM(128kbps)

    • Alarm IN
      1 Channel

    • Alarm Out
      1 Channel

    • Interface
      RJ-45 (10/100Base-T)

    • Protocol
      IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP,SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, ONVIF Ver. 2.0

    • User Account
      10 users

    • Micro SD
      SD, Max 32GB

    • Operating Temperature
      -10°C~+60°C, 10%~90%

    • Power Source
      DC12V/AC24V, PoE(802.3af)

    • Power Consumption
      <17W

    • Regulatory
      CE, FCC and RoHS

    • Dimension
      Φ151mm×119mm

    • Weight
      1.1kg





    *
    *
    *
