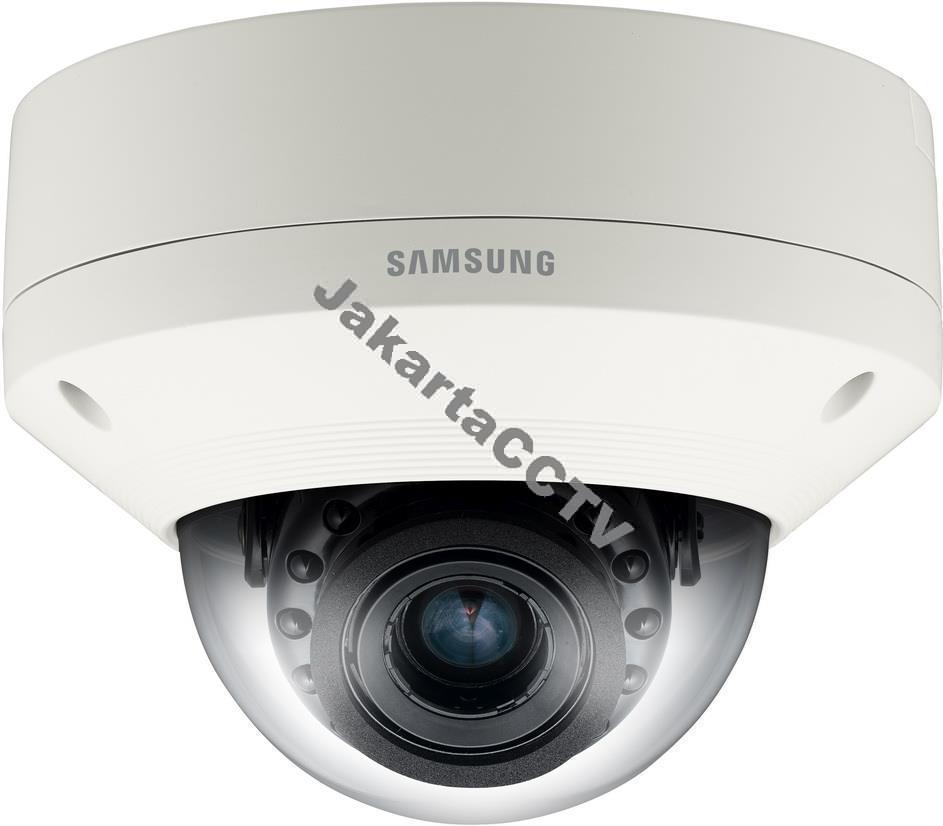

SAMSUNG SNV-6085RP

tidak termasuk pengiriman

• Max. 2megapixel (1920 x 1080) resolution
• 0.09Lux@F1.6 (Color), 0Lux@F1.6 (B/W : IR LED on)
• 10 ~ 23mm (2.3x) motorized varifocal lens
• H.264, MJPEG dual codec, Multiple streaming
• WDR (120dB), Simple focus (Motorized V/F), P-Iris, Defog
• Audio / Face / Motion detection
• micro SD/SDHC/SDXC memory slot
• Multi-crop streaming, PoE
• IP66, IK10, Bi-directional audio support

Qty:

Overview
Contact Us

Jual IP Camera murah, SAMSUNG HANWHA TECHWIN SNV-6085RP CCTV, yang bisa anda beli sekarang dari JakartaCCTV dengan harga kompetitif dan terjangkau. IP Kamera dome IR HANWHA ini dilengkapi dengan lensa motorized varifocal 10-23 mm yang mampu menyesuaikan bukaan lensa kamera secara otomatis ketika sedang beroperasi, sehingga menghasilkan fleksibilitas pada area pandang kamera sekuriti, serta menangkap gambar & video dengan resolusi hingga 2MP (pada 1080P HD) dan menstreamingnya pada berbagai output. Lensa ini terlindungi dalam casing anti air IP66 & anti pencurian / pengrusakan IK10 yang dikombinasikan dengan IR LED yang sanggup memantau sinar infra merah yang dipancarkan oleh objek dalam kegelapan total di sekitar kamera

Kamera ini cocok untuk penempatan pada area outdoor karena kamera ini dilengkapi dengan fitur simple focus, teknologi True WDR (Wide Dynamic Range) yang digunakan untuk menangkap gambar yang jelas pada kondisi dimana objek dikelilingi oleh cahaya belakang yang kuat/terang, sambil menjaga latar belakangnya agar dapat terlihat jelas, audio detection yang dapat mendeteksi suara yang lebih keras dari tingkat tertentu yang dispesifikasikan oleh pengguna, Face detection yang bisa mendeteksi dan mengenali wajah manusia, motion detection yang dapat mendeteksi dan merekam pergerakan yang tidak biasanya, defog capability yang dapat mencerahkan kualitas gambar pada area berkabut serta berbagai fitur cerdik lainnya.

Selain itu kamera ini juga mendukung PoE (Power Over Ethernet), penyimpanan on board melalui Slot Micro SD Card, multi-crop streaming yangmengizinkan penggunanya untuk menghighlight/mengcrop area pada tempat yang dipantau, sehingga hanya area yang berkepentingan saja yang akan ditransmisikan dari kamera, yang dapat menghemat tempat penyimpanan data, serta komunikasi audio dua arah yang memungkinkan penggunanya untuk mendengar dan berbicara dengan subjek yang sedang diawasi.

FITUR & FUNGSI SAMSUNG SNV-6085RP

Max. 2megapixel (1920 x 1080) resolution
0.09Lux@F1.6 (Color), 0Lux@F1.6 (B/W : IR LED on)
10 ~ 23mm (2.3x) motorized varifocal lens
H.264, MJPEG dual codec, Multiple streaming
WDR (120dB), Simple focus (Motorized V/F), P-Iris, Defog
Audio / Face / Motion detection
micro SD/SDHC/SDXC memory slot
Multi-crop streaming, PoE
IP66, IK10, Bi-directional audio support

Hubungi kami sekarang untuk mendapatkan penawaran terbaik dengan harga distributor yang murah untuk IP Cam HANWHA SNV-6085RP ini yang disertai dengan garansi resmi 2 tahun dari distributor HANWHA TECHWIN di Indonesia. Kami, JakartaCCTV akan dengan senang hati membimbing dan membantu anda memilih IP Kamera SAMSUNG atau paket CCTV lainnya yang paling cocok untuk kebutuhan anda serta memberikan penawaran untuk jasa pasang CCTV & proses settingnya.

VIDEO
Imaging Device	1/2.8" 2.38M CMOS (IMX136)
Total Pixels	1,952(H) x 1,116(V)
Effective Pixels	1,944(H) x 1,104(V)
Scanning System	Progressive
Min. Illumination	Color : 0.25Lux (F1.6, 50IRE), 0.09Lux (F1.6, 30IRE) B/W : 0Lux (F1.6, 50IRE, IR LED on), 0Lux (F1.6, 30IRE, IR LED on)
S / N Ratio	50dB
Video Output	CVBS : 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation DIP connector type
LENS
Focal Length (Zoom Ratio)	10 ~ 23mm (2.3x) motorized varifocal
Max. Aperture Ratio	F1.6
Angular Field of View	H : 31.3°(Wide) ~ 13.9°(Tele) / V : 17.1°(Wide) ~ 7.8°(Tele)
Min. Object Distance	0.8m (2.62ft)
Focus Control	Simple focus (Motorized V/F) / Manual, Remote control via network (Manual, Simple focus)
Lens / Mount Type	P-Iris / Board-in type
PAN / TILT / ROTATE
Pan / Tilt / Rotate Range	0° ~ 354° / 0° ~ 67° / 0° ~ 355°
OPERATIONAL
IR LED	14ea
IR Viewable Length	20m (65.62ft)
Camera Title	Off / On (Displayed up to 45 characters)
Day & Night	Auto (ICR) / Color / B/W / External / Schedule
Backlight Compensation	Off / BLC
Wide Dynamic Range	120dB
Contrast Enhancement	SSDR (Off / On)
Digital Noise Reduction	SSNRIII (2D+3D noise filter) (Off / On)
Digital Image Stabilization	Off / On
Defog	Off / Auto / Manual
Motion Detection	Off / On (4ea 4 points polygonal zones)
Privacy Masking	Off / On (32 zones with 4 points of polygonal)
Gain Control	Off / Low / Middle / High
White Balance	ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed	Minimum / Maximum / Anti flicker
Flip / Mirror	Off / On
Intelligent Video Analytics	Tampering, Virtual line, Enter / Exit, (Dis)Appear, Audio detection, Face detection
Alarm I/O	Input 1ea / Output 1ea
Alarm Triggers	Motion detection, Tampering, Audio detection, Face detection, Video analytics, Network disconnection, Alarm input
Alarm Events	File upload via FTP and E-mail, Notification via E-mail, Local storage (SD/SDHC/SDXC) or NAS recording at Event (Alarm triggers), External output
NETWORK
Ethernet	RJ-45 (10/100BASE-T )
Video Compression Format	H.264 (MPEG-4 part 10/AVC), MJPEG
Resolution	1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180
Max. Framerate	H.264 : Max. 60fps at all resolutions MJPEG : 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 : Max. 15fps 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 : Max.30fps
Smart Codec	Manual mode (Area-based : 5ea), Face detection mode
Video Quality Adjustment	H.264 : Compression level, Target bitrate level control, MJPEG : Quality level control
Bitrate Control Method	H.264 : CBR or VBR, MJPEG : VBR
Streaming Capability	Multiple streaming (Up to 10 profiles)
Audio In	Selectable (Mic in / Line in), Max output level : 1 Vrms Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm
Audio Out	Line out (3.5mm stereo mini jack)
Audio Compression Format	G.711 u-law / G.726 selectable G.726 (ADPCM) 8KHz, G.711 8KHz, G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
Audio Communication	Bi-directional audio
IP	IPv4, IPv6
Protocol	TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security	HTTPS(SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication
Streaming Method	Unicast / Multicast
Max. User Access	15 users at unicast mode
Edge Storage	micro SD/SDHC/SDXC max. 64G, NAS - Motion images recorded in the SD/SDHC/SDXC memory card can be downloaded. Manual recording at local PC
Application Programming Interface	ONVIF profile S/G, HTTP API (SUNAPI)
Webpage Language	English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Norwegian, Finnish
Web Viewer	Supported OS : Windows XP / VISTA / 7 / 8 / 8.1, MAC OS X 10.7 ~ 10.10 Supported Browser : Microsoft Internet Explorer (Ver. 8 ~ 11) Mozilla Firefox (Ver. 9 ~ 35), Google Chrome (Ver. 15 ~ 44) Apple Safari (Ver. 8.0.2 (Mac OS X 10.10), 7.0.6 (Mac OS X 10.9), 6.0.2 (Mac OS X 10.8, 10.7 only), 5.1.7) * Mac OS X only
Central Management Software	SmartViewer
ENVIRONMENTAL
operating Temperature / Humidity	-40°C ~ +55°C (-40°F ~ +131°F) / Less than 90% RH * Start up should be done at above -35°C (-31°F)
Storage Temperature / Humidity	-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Ingress Protection / Vandal Resistance	IP66 / IK10
ELECTRICAL
Input Voltage / Current	12V DC ±10%, 24V AC ±10%, PoE (IEEE802.3af )
Power Consumption	Max. 11W (Heater off ), Max. 12.95W (Heater on)
MECHANICAL
Color / Material	Ivory / Aluminum
Dimensions (WxHxD)	Ø160.0 x 118.5mm (Ø6.3" x 4.67")
Weight	970g (2.14 lb)
