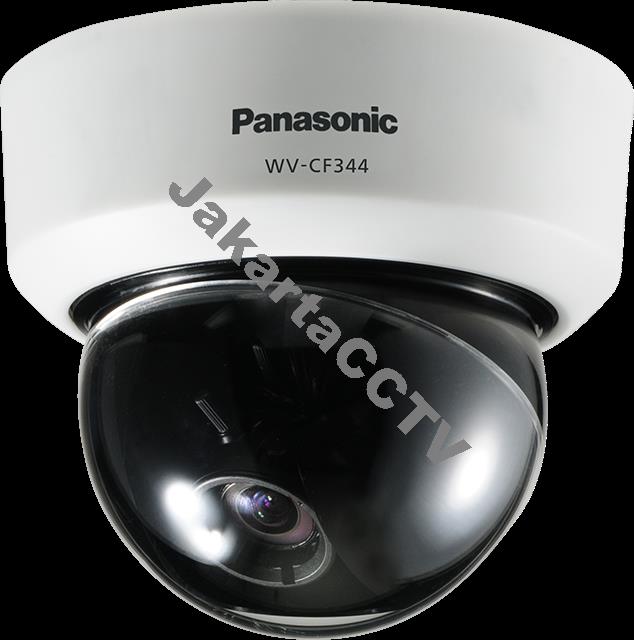

    PANASONIC WV-CF344E

    Rp
    tidak termasuk pengiriman
    • High resolution: 650 TV lines
    • High sensitivity with Day/Night (electrical) function: 0.08 lx (Color), 0.05 lx (B/W) at F1.4
    • ABS (Adaptive Black Stretch) enhances visibility of dark area without degrading image quality in bright area.
    • Focus Assist ensures easy installation.
    • Various adjustment features including BLC (Back-Light Compensation), ATW (Auto Tracing White Balance) and ALC (Automatic Light Control)
    • 2.8 ~ 10 mm 3.6x Varifocal Auto Iris lens
    • 16 axis matrix color compensation function enables wider range of natural color adjustment.
    • Adaptive Digital Noise Reduction: Integration of 2D-DNR and 3D-DNR ensures noise reduction in various conditions.
    • Electronic sensitivity enhancement: Auto (Up to 32x) / Manual (Up to 512x)
    • Electronic shutter from 1/120 to 1/10,000 sec.
    • Digital zoom: Up to 2x
    • Auto Image Stabilizer for applications where vibration or wind is a concern
    • Internal synchronization
    • Over the coaxial cable data communication
    • 16 alphanumerics camera title display
    • Multi language: English, French, Italian, Spanish, German, Russian, Japanese
    • Wide coverage : Horizontal: 100.3 °, Vertical: 73.5 °
    • Lens Distortion Correction
    • On screen display menu
    • Monitor output and ELC mode for easier lens adjustment upon installation
    • 3-way hinge (horizontal, vertical and swivel rotation) for easy installation
    • Various mounting options: Surface mount, Embedded mount (with optional WV-Q174)
    • Smart look fits for various applications such as shopping mall, hotels and hospitals.

    Jual Analog HD Camera murah, PANASONIC WV-CF344E CCTV, yang bisa anda beli sekarang dari JakartaCCTV dengan harga kompetitif dan terjangkau. Kamera AHD dome PANASONIC ini dilengkapi dengan lensa varifocal auto iris 2.8 - 10 mm 3.6x (yang dapat menyesuaikan bukaan lensa kamera secara otomatis ketika sedang beroperasi, sehingga menghasilkan fleksbilitas pada area pandang kamera sekuriti) dan sensor bersensitivitas tinggi beserta dengan fungsi Electronic Day/Night yang dapat menyesuaikan warna pada siang maupun malam hari yang dikombinasikan dengan fungsi ABS (Adaptive Black Stretch) yang dapat meningkatkan visual pada area yang gelap tanpa mengurangi kualitas gambar pada area yang terang.

    Selain itu kamera ini juga mendukung ATW (Auto Tracing White Balance) yang mengijinkan kamera untuk menyesuaikan corak warna secara otomatis untuk memastikan warna agar terlihat alami dan mirip dengan warna yang anda lihat dengan mata anda sendiri ketika merekam suasana di sekitar, teknologi 3D DNR yang bisa mengeliminasi gangguan pada gambar seperti gambar yang blur pada saat objek bergerak atau pada saat mengambil video pada kondisi pencahayaan yang rendah dengan menganalisa single frame pada gambar secara individu untuk membedakan pixel yang mungkin mengganggu, serta lens distortion compensation yang dapat meminimalisir distorsi pada lensa.

    Untuk pemasangan yang lebih mudah, kamera ini juga disertai dengan focus assist serta engsel 3-arah yang dapat menjangkau area yang luas (Horizontal; 100.3o, Vertical; 73.5o) dan penampilan kamera yang pintar membuatnya cocok untuk penempatan pada area indoor seperti pada shopping mall, hotels and rumah sakit.



    FUNGSI & FITUR PANASONIC WV-CF344E



    • High resolution: 650 TV lines
    • High sensitivity with Day/Night (electrical) function: 0.08 lx (Color), 0.05 lx (B/W) at F1.4
    • ABS (Adaptive Black Stretch) enhances visibility of dark area without degrading image quality in bright area.
    • Focus Assist ensures easy installation.
    • Various adjustment features including BLC (Back-Light Compensation), ATW (Auto Tracing White Balance) and ALC (Automatic Light Control)
    • 2.8 ~ 10 mm 3.6x Varifocal Auto Iris lens
    • 16 axis matrix color compensation function enables wider range of natural color adjustment.
    • Adaptive Digital Noise Reduction: Integration of 2D-DNR and 3D-DNR ensures noise reduction in various conditions.
    • Electronic sensitivity enhancement: Auto (Up to 32x) / Manual (Up to 512x)
    • Electronic shutter from 1/120 to 1/10,000 sec.
    • Digital zoom: Up to 2x
    • Auto Image Stabilizer for applications where vibration or wind is a concern
    • Internal synchronization
    • Over the coaxial cable data communication
    • 16 alphanumerics camera title display
    • Multi language: English, French, Italian, Spanish, German, Russian, Japanese
    • Wide coverage : Horizontal: 100.3 °, Vertical: 73.5 °
    • Lens Distortion Correction
    • On screen display menu
    • Monitor output and ELC mode for easier lens adjustment upon installation
    • 3-way hinge (horizontal, vertical and swivel rotation) for easy installation
    • Various mounting options: Surface mount, Embedded mount (with optional WV-Q174)
    • Smart look fits for various applications such as shopping mall, hotels and hospitals.



    Setiap pembelian produk AHD Cam PANASONIC anda akan mendapatkan garansi resmi 2 tahun dari distributor PANASONIC di Indonesia. Jadi, belilah AHD Camera PANASONIC WV-CF344E CCTV ini sekarang dari kami, JakartaCCTV yang juga menawarkan tips yang bermanfaat dalam membeli CCTV, jasa pemasangan dan setting CCTV serta paket CCTV lainnya dengan harga distributor yang murah.









    Camera

    Image Sensor  1/3 type interline transfer CCD
    Effective Pixels  976 (H) x 582 (V)
    Scanning Mode  2:1 interlace
    Scanning Area  4.8 (H) x 3.6 (V) mm
    Scanning Frequency  Horizontal: 15.625 kHz Vertical: 50.00 Hz
    Horizontal Resolution  650 TV lines
    Minimum Illumination  Color: 0.08 lx (Sens Up: Off, AGC: High)
    B/W:0.05 lx (Sens Up: Off, AGC: High)
    Signal-to-Noise Ratio  52 dB (AGC: OFF)
    White Balance  AWC (2,000 ~ 10,000 K), ATW1 (2,700 ~ 8,000 K),
    ATW2 (2,400 ~ 8,000 K)
    Light Control  ALC/ALC+/ELC
    AGC  ON (LOW, MID, HIGH) / OFF
    Electronic Shutter OFF (1/50), AUTO, 1/120, 1/250, 1/500, 1/1,000, 1/2,000,
    1/4,000, 1/10,000
    Electronic Sensitivity UP 32x max. AUTO, 512x max. FIX
    Day Night Day & Night (Electorical) Off / Auto
    Digital Noise Reduction  high or low
    Scene File 2 patterns
    Video Motion Detection OFF / MOTION DET / SCENE CHANGE
    Privacy Zone ON (1) / ON (2) / OFF, up to 8 zones
    Auto Image Stabilizer ON / OFF
    Camera Title 16 alphanumeric characters
    Synchronization  Internal (INT)





    Lens

    Focal Length   2.8 mm ~ 10.0 mm
    Zoom Ration 3.6x
    Angular Field of View  H: 27.6° (Tele) ~ 100.3° (Wide), V: 20.7° (Tele) ~ 73.5° (Wide)
    Maximum Aperture Ratio 1:1.3 (Wide) ~ 3.1 (Tele)
    Focusing Range 0.3 m (0.98 ft.) ~ ∞



    Input / Output

    Video Output  1.0 V [p-p] / PAL composite 75
    Controller Interface Coaxial Multiplex System









    General

    Setup Method OSD setup menu
    Password Lock All menus
    Language English, French, Italian, Spanish, German, Russian, Chinese, Japanese
    Safty/EMC Standard CE (EN55022 ClassB, EN55024), GOST (GOST R 51558)
    Power Source and Power Consumption 12 V DC, 180 mA / 24 V AC, 50 Hz, 2.1 W
    Ambient Operating Temperature –10 °C ~ +50 °C (14 °F ~ 122 °F)
    Ambient Operating Humidity 90 % or less (without condensation)
    Dimensions ø108 x 94 mm (H) (ø4-1/4" x 3-3/4" (H))
    Mass (approx.) 320 g
    Finish ABS resin / Sail White
    *
    *
    *
