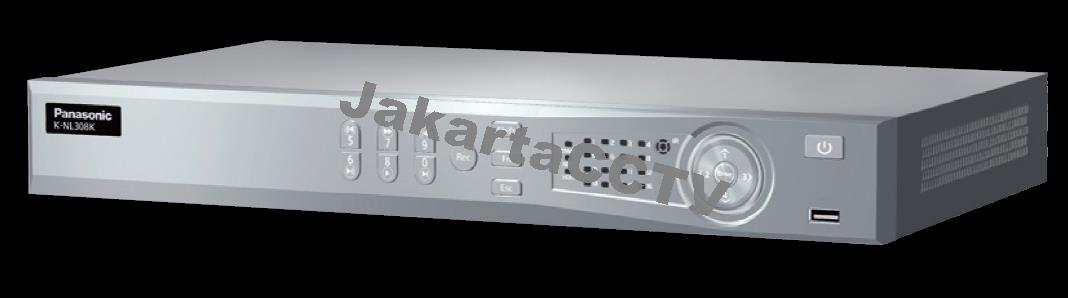

PANASONIC K-NL308K

tidak termasuk pengiriman

• Up to 8 channel with 1080p realtime live view
• H.264 / MJPEG dual codec decoding
• Max 200 Mbps incoming bandwidth
• HDMI / VGA simultaneous video output
• 8 channel synchronous realtime playback
• Support 2 SATA HDDs up to 8 TB, 2 USB
• 8 PoE ports
• Multiple network monitoring : Web browser, EMS* (E-Series Management Software) & Mobile-EMS*
• Multi-Language : English / Thai / Vietnamese

 EMS & Mobile-EMS do not support i-PRO series NVR
 Panasonic Security Viewer is not supported

Qty:

Overview
Contact Us

Jual PANASONIC K-NL308K dengan harga murah, kompetitif dan terjangkau di JakartaCCTV. Network Video Recorder PANASONIC ini mampu menerima input dari 4 saluran IP kamera dan merekam video langsung dengan resolusi hingga 1080p pada kecepatan 200Mbps. File yang direkam bisa diputar ulang secara sinkron ke 8 channel pada saat yang bersamaan dan ditampilkan pada 1 format HDMI, dan 1 format VGA. File tsb pun lalu bisa disimpan ke 2 HDD SATA Port dengan kapasitas hingga 8 TB, atau diback up ke perangkat eksternal melalui 2 USB Port,

Selain itu, NVR PANASONIC ini juga memiliki 8 PoE (Power Over Ethernet) port independen yang dapat digunakan oleh pengguna untuk terhubung ke IP kamera. Pemantauan multi jaringan pada NVR ini juga memungkinkan melalui web browser, EMS (E-Series Management Software), dan Mobile EMS.

FITUR & FUNGSI PANASONIC K-NL308K

Up to 8 channel with 1080p realtime live view
H.264 / MJPEG dual codec decoding
Max 200 Mbps incoming bandwidth
HDMI / VGA simultaneous video output
8 channel synchronous realtime playback
Support 2 SATA HDDs up to 8 TB, 2 USB
8 PoE ports
Multiple network monitoring : Web browser, EMS* (E-Series Management Software) & Mobile-EMS*
Multi-Language : English / Thai / Vietnamese

* EMS & Mobile-EMS do not support i-PRO series NVR

* Panasonic Security Viewer is not supported

Network Video Recorder PANASONIC K-NL308K ini hanya bisa anda dapatkan dengan harga distributor yang murah di JakartaCCTV, yang disertai dengan garansi resmi 2 tahun dari distributor PANASONIC di Indonesia. Beli produk ini dari kami sekarang dan anda juga akan mendapatkan tips yang aman dan berguna dalam memilih, membeli, memasang, dan menyetting NVR PANASONIC dan paket CCTV lainnya yang sesuai dengan kebutuhan anda. Jadi tunggu apa lagi ? Hubungi kami sekarang juga.

System
Main Processor	Dual-core embedded processor
Operating System	Embedded Linux®
Language	English / Thai / Vietnamese
Video / Audio
IP Camera Input	8 channel (Only E-Series camera)
Audio	1channel Input (RCA), 1channel Output (RCA)
Display
Interface	1 HDMI,1 VGA
Resolution	1920 × 1080, 1280 × 1024, 1280 × 720, 1024 × 768
Display Split	1 / 4 / 8 / 9
OSD	Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Compression	H.264 / MJPEG
Resolution	3 Mp (2048 × 1536) / 1080p (1920 × 1080) / 720p (1280 × 720) / D1 (704 × 480) / VGA (640 × 480) / CIF (352 × 240) & etc.
Maximum Bandwidth	Total 200 Mbps or less
Bit Rate	48 - 8192 kbps * Suggested to set bit rate for E-Series camera to 4 Mbps or less
Record Mode	Manual, Schedule {Regular (Continuous), VMD, Alarm}, Stop
Record Interval	Recording duration : 1 - 120 min (default : 60 min), Pre-record : 1 - 30 sec, Post-record : 10 - 300 sec
Video Detection & Alarm
Alarm Action	Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Buzzer & Alarm pop-up
Video Detection	Video Motion Detection, Camera Blank
Alarm Input	4 channel
Relay Output	2 channel
Playback & Backup
Sync Playback	1 / 4 / 8
Search Mode	Time/Date, Alarm, VMD & Exact search (accurate to second), Smart search
Playback Function	Play, Pause, Stop, Rewind, Fast play, Slow play, Next le, Previous le, Next camera, Previous camera, Full screen, Repeat, Backup selection, Digital zoom
Backup Mode	USB Device / Network
Network
Ethernet	1 RJ45 port (10 / 100 / 1000 Mbps)
PoE	8 ports (IEEE802.3at)
Network Function	HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search Suggested to synchronize to external NTP server
Max. User Access	128 users
Smart Phone	iPhone, iPad, Android™
Storage
Internal HDD	2 SATA ports, up to 8 TB
External Interface
USB	2 ports (1 Rear USB3.0,1 Front USB2.0)
General
Safty / EMS Standard	<Safety> : CE, IEC60950-1 <EMC> : EN55022 Class B, EN55024
Power Supply	AC 100 to 240 V, 50/60 Hz (For main unit)
Power Consumption	NVR : 30 W (without HDD) PoE : Max 25.5 W for single port
Ambient Operating Temperature/ Humidity	-10°C to +55°C / 10% to 90%RH / 86~106 kpa
Dimension (W × D × H)	375 mm (W) × 323 mm (D) × 52 mm (H)
Weight	2.5 kg (without HDD)
