    Brand: CP Plus

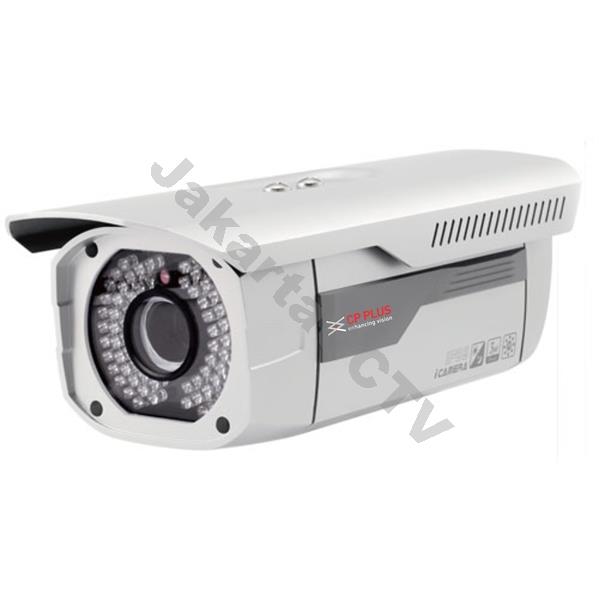

    CP Plus CP-UNC-TY30FL3C

    Rp 14.100.000
    tidak termasuk pengiriman
    1/2.8” 3.0 Megapixel progressive scan Exmor CMOS
    H.264 & MJPEG dual-stream encoding
    Max 20fps@3.0M(2048×1536)&25/30fps@1080P(1920×1080)
    DWDR, Day/Night(ICR), 2DNR, Auto iris, AWB, AGC, BLC
    8~16mm varifocal lens
    Built-in 2/1 alarm in/out
    Max. IR LEDs length 30m
    Max 32GB Micro SD Card for Local Storage
    IP66, PoE
    Mobile Software: CMOB
    CMS Software: IPSS

    Specification :



    • Image Sensor
      1/2.8” 3.0 Megapixel progressive scan Exmor CMOS

    • Minimum Illumination
      0.2LUX/F1.4

    • Shutter Speed
      Auto/Manual, 1/25~1/10000s

    • White Balance
      Auto

    • AGC control
      Auto/Manual

    • Back Light Comp.
      BLC / HLC / DWDR

    • Lens
      8~16mm

    • S/N Ratio
      More than 50 dB

    • Video Compression
      H264/ MJPEG

    • Video Streaming
      Main Stream: 3M(1~20fps)/1080P/720P(1 ~ 25/30fps), Sub Stream: D1/CIF(1 ~ 25/30fps)

    • Resolution
      3.0M(2048×1536) / 1080P(1920×1080) /720P(1280×720) / D1(704×576) /CIF(352×288)

    • Video Output
      1 channel BNC(1.0Vp-p, 75Ω)

    • Privacy Masking
      Up to 4 areas

    • ICR
      Auto(ICR)/Color/B/W

    • Smart Phone
      iPhone, iPad, Android, Windows Phone

    • Snapshot
      Fastest 1fps JPEG capture

    • Audio Input
      1 channel RCA

    • Audio Output
      1 channel RCA

    • Audio Compression
      G.711a / G.711u(64kbps)/ PCM(128kbps)

    • Alarm IN
      2 Input

    • Alarm Out
      1 Output

    • Interface
      RJ-45 (10/100Base-T) & RS485

    • Protocol
      IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP,UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, ONVIF Ver 2.0

    • User Account
      10 users

    • IR
      IR Range max upto 30 Mtrs

    • Micro SD
      Max 32GB, local storage

    • Auto Iris
      Supported

    • Operating Temperature
      -10°C~+60°C, 10%~90%

    • Power Source
      DC12V/AC24V, PoE

    • Power Consumption
      Max 15W

    • Weatherproof Standard
      IP66

    • Regulatory
      CE, FCC and RoHS

    • Dimension
      118.3×288.3×101mm

    • Weight
      2.5Kg





    *
    *
    *

    Specification :



    • Image Sensor
      1/2.8” 3.0 Megapixel progressive scan Exmor CMOS

    • Minimum Illumination
      0.2LUX/F1.4

    • Shutter Speed
      Auto/Manual, 1/25~1/10000s

    • White Balance
      Auto

    • AGC control
      Auto/Manual

    • Back Light Comp.
      BLC / HLC / DWDR

    • Lens
      8~16mm

    • S/N Ratio
      More than 50 dB

    • Video Compression
      H264/ MJPEG

    • Video Streaming
      Main Stream: 3M(1~20fps)/1080P/720P(1 ~ 25/30fps), Sub Stream: D1/CIF(1 ~ 25/30fps)

    • Resolution
      3.0M(2048×1536) / 1080P(1920×1080) /720P(1280×720) / D1(704×576) /CIF(352×288)

    • Video Output
      1 channel BNC(1.0Vp-p, 75Ω)

    • Privacy Masking
      Up to 4 areas

    • ICR
      Auto(ICR)/Color/B/W

    • Smart Phone
      iPhone, iPad, Android, Windows Phone

    • Snapshot
      Fastest 1fps JPEG capture

    • Audio Input
      1 channel RCA

    • Audio Output
      1 channel RCA

    • Audio Compression
      G.711a / G.711u(64kbps)/ PCM(128kbps)

    • Alarm IN
      2 Input

    • Alarm Out
      1 Output

    • Interface
      RJ-45 (10/100Base-T) & RS485

    • Protocol
      IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP,UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, ONVIF Ver 2.0

    • User Account
      10 users

    • IR
      IR Range max upto 30 Mtrs

    • Micro SD
      Max 32GB, local storage

    • Auto Iris
      Supported

    • Operating Temperature
      -10°C~+60°C, 10%~90%

    • Power Source
      DC12V/AC24V, PoE

    • Power Consumption
      Max 15W

    • Weatherproof Standard
      IP66

    • Regulatory
      CE, FCC and RoHS

    • Dimension
      118.3×288.3×101mm

    • Weight
      2.5Kg
