Produk sesudahnyaCP Plus CP-UNC-DP13FL2C

Brand: CP Plus

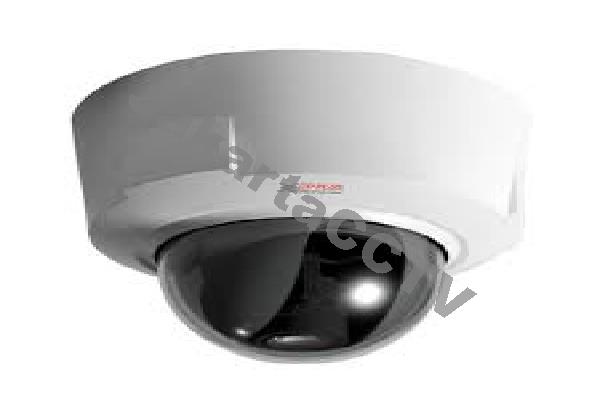

CP Plus CP-UNC-DP13FC

Rp 6.800.000

tidak termasuk pengiriman

1/3” 1.3MP PS CMOS Image Sensor
H.264 & MJPEG dual-stream encoding
Max [email protected](1280×960)&25/[email protected](1280×720)
Day/Night(ICR), 2DNR, Auto iris, AWB, AGC, BLC
2.8~12mm varifocal lens
Built-in 1/1 alarm in/out
Micro SD memory, PoE
Mobile Software: CMOB
CMS Software: IPSS

Qty:

Overview
Contact Us

Specifications
Image Sensor	1/3” 1.3 Megapixel CMOS
Minimum Illumination	0.1lux/F1.4
Shutter Speed	Auto/Manual, 1/3~1/10000s
White Balance	Auto
AGC control	Auto/Manual
Lens	2.8~12mm
Back Light Comp.	Off/BLC/HLC/DWDR
Video Compression	H.264/MJPEG/JPEG
Resolution	1.3M(1280×960) / 720P(1280×720) / D1(704×576) / CIF(352×288)
Micro SD	Max 32GB
User Account	10 users
Privacy Masking	Up to 4 areas
Video Streaming	Main Stream: 1.3M(1-15fps), 720P(1 ~ 25/30fps), Extra Stream: D1/CIF(1 ~ 25/30fps)
Dimension	Φ140.3x113.7mm
Interface	RJ-45(10/100Base-T)
Protocol	IPv4/IPv6, HTTP, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS,Bonjour, ONVIF Ver. 2.0
Smart Phone	iPhone, iPad, Android, Windows Phone
Operating Temperature	-10°C~+60°C, 10%~90%
Power Source	DC12V, PoE(802.3af)
Power Consumption	<3W
Weight	0.8kg
S/N Ratio	More than 50 dB
ICR	Auto(ICR) / Color / B/W
Alarm IN	1 Ch.
Alarm Out	1 Ch.
Video Output	1 channel BNC(1.0Vp-p, 75Ω)
Regulatory	CE FCC & RoHs
Audio Input	1 Ch.
Audio Output	1 Ch.
Audio Compression	G.711a / G.711u (64kbps)/ PCM(128kbps)

Namamu *

Email Anda *

Pertanyaan *

Specifications
Image Sensor	1/3” 1.3 Megapixel CMOS
Minimum Illumination	0.1lux/F1.4
Shutter Speed	Auto/Manual, 1/3~1/10000s
White Balance	Auto
AGC control	Auto/Manual
Lens	2.8~12mm
Back Light Comp.	Off/BLC/HLC/DWDR
Video Compression	H.264/MJPEG/JPEG
Resolution	1.3M(1280×960) / 720P(1280×720) / D1(704×576) / CIF(352×288)
Micro SD	Max 32GB
User Account	10 users
Privacy Masking	Up to 4 areas
Video Streaming	Main Stream: 1.3M(1-15fps), 720P(1 ~ 25/30fps), Extra Stream: D1/CIF(1 ~ 25/30fps)
Dimension	Φ140.3x113.7mm
Interface	RJ-45(10/100Base-T)
Protocol	IPv4/IPv6, HTTP, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS,Bonjour, ONVIF Ver. 2.0
Smart Phone	iPhone, iPad, Android, Windows Phone
Operating Temperature	-10°C~+60°C, 10%~90%
Power Source	DC12V, PoE(802.3af)
Power Consumption	<3W
Weight	0.8kg
S/N Ratio	More than 50 dB
ICR	Auto(ICR) / Color / B/W
Alarm IN	1 Ch.
Alarm Out	1 Ch.
Video Output	1 channel BNC(1.0Vp-p, 75Ω)
Regulatory	CE FCC & RoHs
Audio Input	1 Ch.
Audio Output	1 Ch.
Audio Compression	G.711a / G.711u (64kbps)/ PCM(128kbps)

Produk-produk terkait

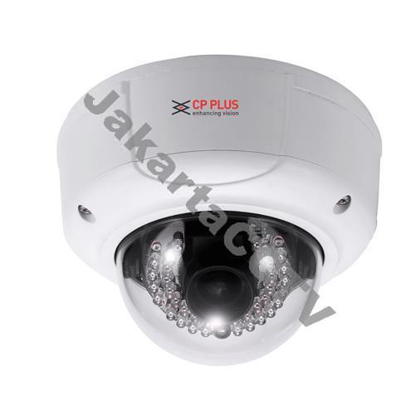

CP Plus CP-UNC-VY30FL2C

Rp 11.700.000 tidak termasuk pengiriman

1/2.8” 3.0 Megapixel progressive scan Exmor CMOS
H.264 & MJPEG dual-stream encoding
DWDR, Day/Night(ICR), 2DNR, Auto iris, AWB, AGC, BLC
Max [email protected](2048×1536)&25/[email protected](1920×1080)
3.3~12mm varifocal lens
IR Range max upto 20M
Built-in 2/1 alarm in/out
Supports PoE and IP66 Rating Vandal Proof, IK10
Max 32GB Micro SD Card for Local Storage
Mobile Software: CMOB
CMS Software: IPSS

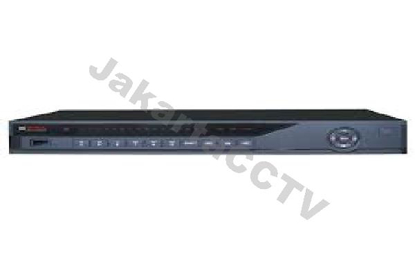

CP Plus CP-UNR-304Q2-XU
