Produk sesudahnyaCP Plus CP-UAP-SY37CL10-EH

Brand: CP Plus

CP Plus CP-UAP-SY37C-EH

Rp 14.200.000

tidak termasuk pengiriman

1/4" Super HAD CCD II
High Resolution of 600TVL
Min. Illumination of 0.01 Lux/F1.6(AGC ON,Slow Shutter ON)
Powerful 37x Optical Zoom
Day/Night (ICR), D-WDR, DNR (2D and 3D), Auto iris, Auto focus, AWB, AGC, BLCMax 240 °/s pan speed, 360° continuous pan rotation & auto flips with no blind spot monitor
Up to 255 preset, 5 auto scan, 8 tour, 5 patternAuto recognition of general protocols Pelco-P/DUnique 3D positioning function
OSD and operation prompts of various languages
IP66 all-environments protection, 4000V thunder-proof

Qty:

Overview
Contact Us

Specifications
Image Sensor	1/4" Super HAD CCD II
Pixels	PAL: 752(H) x 582(V), NTSC: 768(H) x x494(V)
Resolution	600 TVL
Min. Illumination	0.01 Lux/F1.6(AGC ON,Slow Shutter ON)
S/N Ratio	more than 50 dB
Electronic Shutter	Auto: 1/s~1/100,000s Manual: 1/s~1/10,000s
Zoom Optical	37x
Iris Control	Auto Iris
Focus Mode	Auto
White Balance (AWB)	AWB (3000 to 7500K), ATW(2000 to 1000K), Indoor(3200K), Outdoor(5800K), Manual
Gain Control (AGC)	Auto / Manual
Back Light Comp.	ON/OFF
Day & Night (ICR)	Yes
Special Functions	Day/Night (ICR), D-WDR, DNR (2D&3D), Auto iris, Auto focus, AWB, AGC, BLC
Pan Range	Horizontal: 0°~360° endless, Vertical: -2°~90° auto fl
Surge Protection	yes
Tilt Range	Horizontal: 0°~360° endless, Vertical: -2°~90° auto fl
Preset Speed	Horizontal: 240° /s, Vertical: 200° /s
Alarm	2/1 channel In/Out
Number of Presets	255
Operating Temp	-40ºC ~ 60ºC
IP Rating	66
Communication	RS485
Lens	3.4mm ~ 122.4mm
Video Output	CVBS: 1.0Vp-p / 75Ω
Power Supply	AC 24V/1.5A (±10%)
Power Consumption	12W(Indoor), 24W(Outdoor, heater on)
Zoom Digital	16x
Certifications	CE, FCC and RoHS
Weight	5.0kg

Namamu *

Email Anda *

Pertanyaan *

Specifications
Image Sensor	1/4" Super HAD CCD II
Pixels	PAL: 752(H) x 582(V), NTSC: 768(H) x x494(V)
Resolution	600 TVL
Min. Illumination	0.01 Lux/F1.6(AGC ON,Slow Shutter ON)
S/N Ratio	more than 50 dB
Electronic Shutter	Auto: 1/s~1/100,000s Manual: 1/s~1/10,000s
Zoom Optical	37x
Iris Control	Auto Iris
Focus Mode	Auto
White Balance (AWB)	AWB (3000 to 7500K), ATW(2000 to 1000K), Indoor(3200K), Outdoor(5800K), Manual
Gain Control (AGC)	Auto / Manual
Back Light Comp.	ON/OFF
Day & Night (ICR)	Yes
Special Functions	Day/Night (ICR), D-WDR, DNR (2D&3D), Auto iris, Auto focus, AWB, AGC, BLC
Pan Range	Horizontal: 0°~360° endless, Vertical: -2°~90° auto fl
Surge Protection	yes
Tilt Range	Horizontal: 0°~360° endless, Vertical: -2°~90° auto fl
Preset Speed	Horizontal: 240° /s, Vertical: 200° /s
Alarm	2/1 channel In/Out
Number of Presets	255
Operating Temp	-40ºC ~ 60ºC
IP Rating	66
Communication	RS485
Lens	3.4mm ~ 122.4mm
Video Output	CVBS: 1.0Vp-p / 75Ω
Power Supply	AC 24V/1.5A (±10%)
Power Consumption	12W(Indoor), 24W(Outdoor, heater on)
Zoom Digital	16x
Certifications	CE, FCC and RoHS
Weight	5.0kg

Produk-produk terkait

CP Plus CP-UNC-BY10C

Rp 10.600.000 tidak termasuk pengiriman

1/3” 1.3 Megapixel progressive scan CCD
H.264 & MJPEG dual-stream encoding
Max 12/[email protected](1280×720)&25/30fps@720P(1280x720)
DWDR, Day/Night(ICR), 2DNR, Auto iris, AWB, AGC, BLC
Supports PoE
C/CS Mount Lens
Built-in 1/1 alarm in/out
Micro SD memory
Mobile Software: CMOB
CMS Software: IPSS

CP Plus CP-UNC-BY20C

Rp 7.800.000 tidak termasuk pengiriman

1/3” 2Megapixel progressive scan Exmor CMOS
H.264 & MJPEG dual-stream encoding
25/30fps@1080P(1920×1080)
DWDR, Day/Night(ICR), 2DNR, AWB, AGC, BLC
Max 25fps@1080P Resolution
Built-in 1/1 alarm in/out
Supports PoE(IEEE802.3af)
Supports PoE
SD Card for Local Storage
Mobile Software: CMOB
CMS Software: IPSS

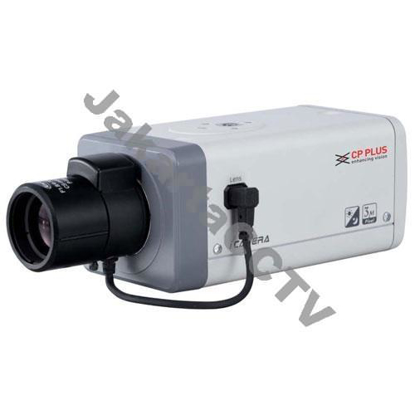

CP Plus CP-UNC-BY30C

Rp 9.100.000 tidak termasuk pengiriman

1/2.8” 3.0 MP PS Exmor CMOS Image Sensor
H.264 & MJPEG dual-stream encoding
Max [email protected](2048×1536)&25/30fps@1080P(1920×1080)
DWDR, Day/Night(ICR), 2DNR, AWB, AGC, BLC
Support Alarm I/O and RS485 and RS232
Built-in 1/1 alarm in/out
Supports PoE
Max 32GB SD Card for Local Storage
Mobile Software: CMOB
CMS Software: IPSS

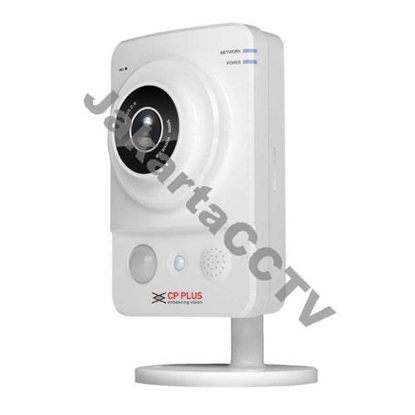

CP Plus CP-UNC-CP10L1
