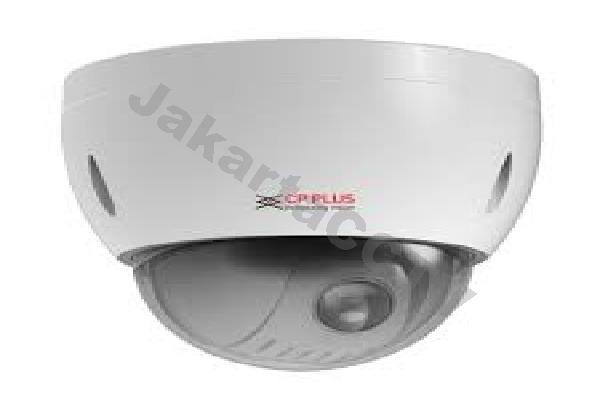

Produk sesudahnyaCP Plus CP-UAP-SY23C-EH

Brand: CP Plus

CP Plus CP-UAP-SY23C

Rp 9.000.000

tidak termasuk pengiriman

• 1/4" EXview HAD CCD II
• High Resolution of 650TVL
• Min. Illumination of 0.01Lux@F1.6
• Powerful 23x Optical Zoom
• DWDR, Day/Night (ICR), DNR (2D&3D), Auto iris, Auto focus, AWB, AGC, BLC
• Max 300°/s pan speed, 360° continuous pan rotation
• Up to 255 presets, 5 auto scan, 8 tour, 5 pattern
• Built-in 2/1 alarm I/O

Qty:

Overview
Contact Us

Specifications
Image Sensor	1/4" EXview HAD CCD II
Pixels	976(H) × 582(V) / 976(H) × 494(V)
Resolution	650TVL
Min. Illumination	0.01 Lux/F1.6
S/N Ratio	more than 50dB
Electronic Shutter	1/1s ~1/100,000s
Zoom Optical	23x
Iris Control	Yes
Focus Mode	Auto / Manual
White Balance (AWB)	Auto, ATW, Indoor, Outdoor, Manual
Gain Control (AGC)	Auto / Manual
Back Light Comp.	BLC / HLC / DWDR
Day & Night (ICR)	Auto(ICR) / Color / B/W
Angle of View	61.68° ~ 3.06°
Close Focus Distance	100mm~1000mm
Special Functions	DWDR, Day/Night (ICR), DNR (2D&3D), Auto iris
Pan Range	0° ~ 360° endless
Pan Speed	0.1° ~ 250°/s
Idle Motion	Activate Preset/Pan/Scan/Tour/Pattern if there is no command in the specified period
Tilt Range	0° ~ 90°, auto flip 180°
Tilt Speed	0.1° ~150°/s
Power up Action	Auto restore to previous PTZ and lens status after power failure
Time Task	Auto activation of Preset/Pan/Scan/Tour/Pattern by preset-time
Number of Presets	255
Preset Speed	Pan: 300°/s; Tilt:200°/s
Alarm	2/1 channel In/Out
Communication	RS485
Sync. System	Interlacing
Video Output	BNC(1.0Vp-p/75Ω), PAL / NTSC
Power Supply	AC24V/1.5A (±10%), DC12V optional
Power Consumption	12W
IP Rating	IP66
Dimensions	Φ170mm×155mm
Weight	1.5KG
Operating Temp	-10ºC ~ 50ºC / Less than 90% RH
Zoom Digital	16x
Lens	3.9 mm~89.7mm
Gamma	0.45
Privacy Mask	Up to 24 areas

Namamu *

Email Anda *

Pertanyaan *

Specifications
Image Sensor	1/4" EXview HAD CCD II
Pixels	976(H) × 582(V) / 976(H) × 494(V)
Resolution	650TVL
Min. Illumination	0.01 Lux/F1.6
S/N Ratio	more than 50dB
Electronic Shutter	1/1s ~1/100,000s
Zoom Optical	23x
Iris Control	Yes
Focus Mode	Auto / Manual
White Balance (AWB)	Auto, ATW, Indoor, Outdoor, Manual
Gain Control (AGC)	Auto / Manual
Back Light Comp.	BLC / HLC / DWDR
Day & Night (ICR)	Auto(ICR) / Color / B/W
Angle of View	61.68° ~ 3.06°
Close Focus Distance	100mm~1000mm
Special Functions	DWDR, Day/Night (ICR), DNR (2D&3D), Auto iris
Pan Range	0° ~ 360° endless
Pan Speed	0.1° ~ 250°/s
Idle Motion	Activate Preset/Pan/Scan/Tour/Pattern if there is no command in the specified period
Tilt Range	0° ~ 90°, auto flip 180°
Tilt Speed	0.1° ~150°/s
Power up Action	Auto restore to previous PTZ and lens status after power failure
Time Task	Auto activation of Preset/Pan/Scan/Tour/Pattern by preset-time
Number of Presets	255
Preset Speed	Pan: 300°/s; Tilt:200°/s
Alarm	2/1 channel In/Out
Communication	RS485
Sync. System	Interlacing
Video Output	BNC(1.0Vp-p/75Ω), PAL / NTSC
Power Supply	AC24V/1.5A (±10%), DC12V optional
Power Consumption	12W
IP Rating	IP66
Dimensions	Φ170mm×155mm
Weight	1.5KG
Operating Temp	-10ºC ~ 50ºC / Less than 90% RH
Zoom Digital	16x
Lens	3.9 mm~89.7mm
Gamma	0.45
Privacy Mask	Up to 24 areas
