Brand: Axis

Axis P5532

Telp untuk Harga

29x optical zoom
D1 resolution, H.264, day/night functionality
IP51-rated protection against dust and dripping water
High PoE (IEEE 802.3at)
Advanced Gatekeeper

Qty:

Overview
Specifications
Contact Us

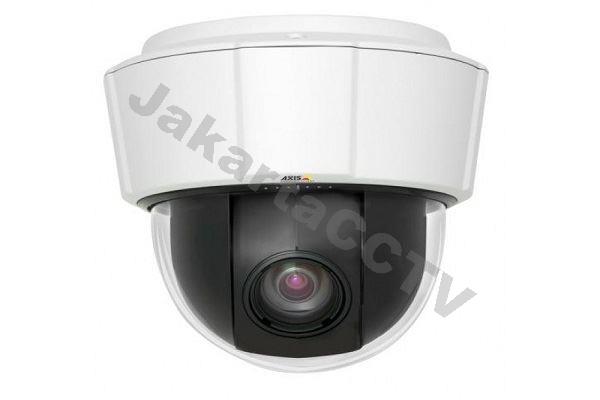

AXIS P5532 PTZ DOME NETWORK CAMERA

Network Kamera PTZ dengan kemampuan video stream yang secara individual dikonfigurasi dalam H.264 dan Motion JPEG di frame rate penuh pada semua resolusi sampai denganresolusi D1 (720x480 di 60 Hz, 720x576 di 50 Hz). Dengan H.264 kmaera ini sangat mengoptimalkan bandwidth dan penyimpanan tanpa mengurangi kualitas dari gambar.

Kemampuan PTZ pada AXIS P5532

AXIS P5532 menyediakan 29x optical zoom dan 12x digital zoom dengan autofocus. Kamera ini dapat melakukan pergeseran hingga 360° karena telah dilengkapi dengan fungsi Auto-flip yang unik, yang memungkinkan kamera untuk terus mengikuti objek. Fungsi Advanced Gatekeeper memungkinkan kamera untuk secara otomatis pindah ke posisi preset ketika gerakan terdeteksi di daerah yang telah ditetapkan.

Indoor Kamera PTZ AXIS P5532

Kamera AXIS telah di desain dengan perlindungan IP51-rated yang mampu bertahan terhadap debu dan air yang menetes, sangat ideal untuk digunakan sebagai kamera pengawas di bandara, stasiun kereta api, gudang dan pusat perbelanjaan. Fungsi Day/Night di kamera ini memungkinkan untuk memberikan kualitas gambar yang tinggi serta tetap mampu bertahan pada kondisi yang sangat minim cahaya.

FITUR AXIS P5532

1/4" ExView HAD progressive scan CCD.
3.6 - 104.4 mm / F1.43 autoiris, autofocus, 29x optical zoom, 12x digital zoom.
Angle : 53.1^o - 2.0^o_.
H.264, Motion JPEG.
Night Vision : Yes.
Res : 720 x 576.
Audio : Yes.
AC/DC, High PoE IEEE 802.3at.
100 Preset, 360^o rotate, 180^o tilt.
IP 51 housing.

Kami menyediakan paket CCTV murah dan paket DVR murah mulai dari jual IP camera, jual IR camera, jual Analog camera, jual Dome camera, jual Cube camera, jual Box camera serta jual DVR 4 channels, jual DVR 6 channels, jual DVR 8 channels, jual DVR 12 channels, jual DVR 16 channels, jual DVR 32 channels. Jual 16CH DVRmurah di Jakarta hanya di JakartaCCTV. JakartaCCTV terpercaya dan berpengalaman. Pemasangan CCTV yang langsung ditangani oleh teknisi yang berpengalaman. Kamera network AXIS P5532 hanya bisa Anda dapatkan hanya di JakartaCCTV dengan harga network cctv murah.

Spesifikasi produk

Image Sensor	1/4" ExView HAD progressive scan CCD
Lens	f=3.6 – 104.4 mm, F1.43 – 3.67, autofocus, automatic day/night Horizontal angle of view: 53.1° - 2.0°
Min.Illumination	Color: 0.5 lux at 30 IRE F1.4 B/W: 0.01 lux at 30 IRE F1.4
Shutter Time	1/30000 s to 1 s (60 Hz), 1/30000 s to 1/0.75 s (50 Hz)
Pan/ Tilt/ Zoom	E-flip, Auto-flip, 100 preset positions Pan: 360° (with Auto-flip), 0.2° - 300°/s Tilt: 180°, 0.2° – 300°/s 29x optical zoom and 12x digital zoom, total 348x zoom
Pan/ tilt/zoom functionalities	Limited guard tour Control queue On-screen directional indicator
Video Compression	H.264 (MPEG-4 Part 10/AVC) Motion JPEG
Video Resolution	D1 720x480 to 176x120 (60 Hz) D1 720x576 to 176x144 (50 Hz)
Video Framerate	H.264: Up to 30/25 fps (60/50 Hz) in all resolutions Motion JPEG: Up to 30/25 fps (60/50 Hz) in all resolutions
Video Streaming	Multiple, individually configurable streams in H.264 and Motion JPEG Controllable frame rate and bandwidth VBR/CBR H.264
Image settings	Wide dynamic range (WDR), electronic image stabilization (EIS), manual shutter time, compression, color, brightness, sharpness, white balance, exposure control, exposure zones, backlight compensation, fine tuning of behavior at low light, rotation, aspect ratio correction, text and image overlay, privacy mask, image freeze on PTZ
Audio streaming	Two-way
Audio Compression	AAC-LC 8/16 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz Configurable bit rate
Audio Input / Output	Requires multi-connector cable (not included) for external microphone or line input, and line output
Security	Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, digest authentication, user access log
Protocol Support	IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, CIFS/ SMB, SMTP, Bonjour, UPnP™, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
Application Programming Interface	Open API for software integration, including VAPIX® from Axis Communications, available at www.axis.com Support for AXIS Video Hosting System (AVHS) with One-Click Camera Connection
Intelligent Video	Video motion detection, audio detection, Advanced Gatekeeper AXIS Camera Application Platform enabling installation of additional applications
Trigger Events	Video motion detection, audio detection, external input, PTZ preset, temperature, memory card full
Event actions	File upload: FTP, HTTP, network share and email; notification: email, HTTP and TCP; external output activation; video and audio recording to edge storage; pre- and post-alarm video buffering; play audio clip
Data streaming	Event data
Built-in installation aids	Pixel counter
Casing	IP51-rated metal casing (aluminum), acrylic (PMMA) clear dome
Memory	256 MB RAM, 128 MB Flash
Power	Power over Ethernet Plus (PoE+) IEEE 802.3at, max. 30 W 20-24 V AC, max. 20 VA 24-34 V DC, max. 15 W AXIS T8123 High PoE Midspan 1-port: 100-240 V AC, max. 37 W
Connectors	RJ-45 for 10BASE-T/100BASE-TX PoE Multi-connector (cable not included) for AC/DC power, 4 configurable alarm inputs/outputs, mic in, line mono input, line mono output to active speaker
Edge Storage	SD/SDHC memory card slot (card not included) Support for recording to network share (network-attached storage or file server)
Edge Storage	0 °C to 50 °C (32 °F to 122 °F) Humidity 15 - 85% RH (non-condensing)
Approvals	EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 55024, FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, C-tick AS/NZS CISPR 22, EN 60950-1, KCC Class B IP51 IEC 60721-4-3 Class 3K3, 3M3, EN/IEC 60068-2 Midspan: EN 60950-1, GS, UL, cUL, CE, FCC, VCCI, CB, KCC, UL-AR
Weight	Camera: 1.9 kg (4.2 lb.) Camera with drop-ceiling mount: 2.3 kg (5.1 lb.)
Included accessories	AXIS T8123 High PoE Midspan 1-port, mounting kit for hard and drop ceilings, smoked dome cover, Installation Guide, Installation and Management Software CD, Windows decoder 1-user license
