Brand: Axis

Axis M3203

Rp 6.640.000

tidak termasuk pengiriman

Excellent image quality
Multiple H.264 streams
Power over Ethernet
Intelligent video capabilities
Pixel counter

Qty:

Overview
Specifications
Contact Us

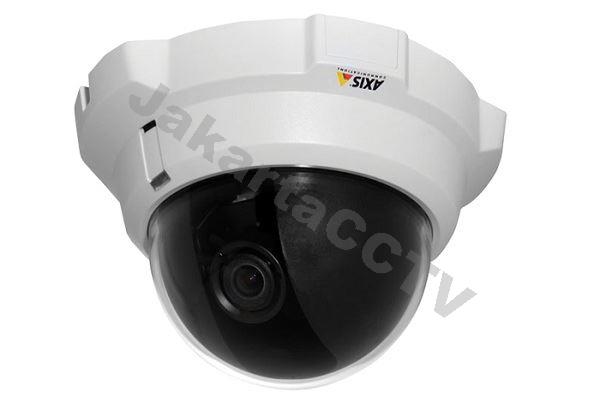

AXIS M3203 DOME NETWORK CAMERA

AXIS M3203 dome camera dirancang untuk pengawasan di dalam dan luar ruangan, kamera hemat biaya yang ditawarkan oleh brand AXIS karena telah terdapat fitur PoE (Power over Ethernet), dengan fitur PoE yang terpasang pada CCTV model ini mampu menyalurkan listrik dengan menggunakan kabel UTP/TSP atau melalui jaringan sehingga dapat menghemat biaya instalasi. Kamera CCTV AXIS model ini mampu beroperasi dengan optimal pada suhu 0 °C to 50 °C (32 °F to 122 °F) dengan Kelembaban 15-85% RH (non-kondensasi) dan gambar Sensor gambar 1/4” Progressive scan RGB CMOS. Jual Network Kamera AXIS M3203 harga murah di Jakarta. Kamera yang memiliki resolusi 800x600 atau 160x90. Kamera model ini juga memiliki angle pan 360°, tilt 170° dan rotasi 340° dengan waktu bidik sekitar 1/24500 s to 1/6 s.

Network Kamera AXIS M3203 dome kamera. dome camera AXIS M3203 adalah CCTV yang mampu terhubung dengan jaringan melalui konektor RJ45 10BASE-T/100BASE-TX PoE. AXIS M3203 memiliki bobot yang ringan, yaitu hanya 430 g (1.0 lb).

FITUR AXIS M3203

Resolusi kamera 800 x 600 atau 160 x 90.
Sensor gambar 1/4” Progressive scan RGB CMOS.
Desain Compact yang kuat terhadap debu.
Memory 128 MB RAM, 128 MB Flash.
Casing Tamper-resistant plastic casing.
PoE (Power over Ethernet) IEEE 802.3af Class 2 (max. 4.2 W).
Instalasi yang fleksibel untuk pemasangan yang mudah.

AXIS M3203 hanya bisa Anda dapatkan hanya di JakartaCCTV dengan harga network cctv murah. Kami menyediakan paket CCTV murah dan paket DVR murah mulai dari jual IP camera, jual IR camera, jual Analog camera, jual Dome camera, jual Cube camera, jual Box camera serta jual DVR 4 channels, jual DVR 6 channels, jual DVR 8 channels, jual DVR 12 channels, jual DVR 16 channels, jual DVR 32 channels. Jual 16CH DVRmurah di Jakarta hanya di JakartaCCTV. JakartaCCTV terpercaya dan berpengalaman. Pemasangan CCTV yang langsung ditangani oleh teknisi yang berpengalaman.

Spesifikasi produk

Image Sensor	1/4” Progressive scan RGB CMOS
Lens	Varifocal 2.8–10 mm, Horizontal angle of view: 66°–18°, F1.7, Fixed iris
Light sensitivity	0.9–100000 lux, F1.7
Shutter Time	1/24500 s to 1/6 s
Angle Adjustment	Pan 360°, Tilt 170°, Rotation 340°
Pan/ Tilt/ Zoom	Digital PTZ, Preset positions, Guard tour
Video Compression	H.264 (MPEG-4 Part 10/AVC) Motion JPEG
Video Resolution	800x600 to 160x90
Video Framerate	30 fps in all resolutions
Video Streaming	Multiple, individually configurable streams in H.264 and Motion JPEG Controllable frame rate and bandwidth, VBR/CBR H.264
Image settings	Compression, Color, Brightness, Sharpness, Contrast, White balance, Exposure control, Exposure zones, Backlight compensation, Fine tuning of behavior at low light, Rotation – including Corridor Format, Text and image overlay, Privacy mask, Mirroring of images
Security	Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa , Digest authentication, User access log
Protocol Support	IPv4/v6, HTTP, HTTPSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
Application Programming Interface	Open API for software integration, including VAPIX® and AXIS Camera Application Platform; specifications at www.axis.com AXIS Video Hosting System (AVHS) with One-Click Camera Connection. ONVIF Profile S; specification at www.onvif.org
Intelligent Video	Video motion detection, Active tampering alarm, AXIS Camera Application Platform enabling installation of additional applications
Trigger Events	Intelligent video
Event actions	File upload: FTP, HTTP, network share and email Notification: email, HTTP and TCP Video recording to edge storage Pre- and post-alarm video buffering External output activation
Data streaming	Event data
Built-in installation aids	Pixel counter
Casing	Tamper-resistant plastic casing, Polycarbonate transparent cover, Metal inner camera modulewith encapsulated electronics, Color: White NCS S 1002-B
Memory	128 MB RAM, 128 MB Flash
Power	Power over Ethernet IEEE 802.3af Class 2 (max. 4.2 W)
Connectors	RJ45 10BASE-T/100BASE-TX PoE
Edge Storage	Support for recording to network share (network-attached storage or file server)
Operating Conditions	0 °C to 50 °C (32 °F to 122 °F) Humidity 15–85% RH (non-condensing)
Approvals	EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, EN 55024, FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, C-tick AS/NZS CISPR 22 Class B, KCC KN22 Class B, KN24, EN 60950-1, UL
Weight	430 g (1.0 lb)
Included accessories	Installation Guide, Installation and Management Software CD, Key for tamper-proof screws, Windows decoder 1-user license
Video Management Software	AXIS Camera Companion (included), AXIS Camera Station and video management software from Axis’ Application Development Partners (not included). For more information, see www.axis.com/products/video/software

Namamu *

Email Anda *

Pertanyaan *

AXIS M3203 DOME NETWORK CAMERA

FITUR AXIS M3203

Resolusi kamera 800 x 600 atau 160 x 90.
Sensor gambar 1/4” Progressive scan RGB CMOS.
Desain Compact yang kuat terhadap debu.
Memory 128 MB RAM, 128 MB Flash.
Casing Tamper-resistant plastic casing.
PoE (Power over Ethernet) IEEE 802.3af Class 2 (max. 4.2 W).
Instalasi yang fleksibel untuk pemasangan yang mudah.

Spesifikasi produk

Image Sensor	1/4” Progressive scan RGB CMOS
Lens	Varifocal 2.8–10 mm, Horizontal angle of view: 66°–18°, F1.7, Fixed iris
Light sensitivity	0.9–100000 lux, F1.7
Shutter Time	1/24500 s to 1/6 s
Angle Adjustment	Pan 360°, Tilt 170°, Rotation 340°
Pan/ Tilt/ Zoom	Digital PTZ, Preset positions, Guard tour
Video Compression	H.264 (MPEG-4 Part 10/AVC) Motion JPEG
Video Resolution	800x600 to 160x90
Video Framerate	30 fps in all resolutions
Video Streaming	Multiple, individually configurable streams in H.264 and Motion JPEG Controllable frame rate and bandwidth, VBR/CBR H.264
Image settings	Compression, Color, Brightness, Sharpness, Contrast, White balance, Exposure control, Exposure zones, Backlight compensation, Fine tuning of behavior at low light, Rotation – including Corridor Format, Text and image overlay, Privacy mask, Mirroring of images
Security	Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa , Digest authentication, User access log
Protocol Support	IPv4/v6, HTTP, HTTPSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
Application Programming Interface	Open API for software integration, including VAPIX® and AXIS Camera Application Platform; specifications at www.axis.com AXIS Video Hosting System (AVHS) with One-Click Camera Connection. ONVIF Profile S; specification at www.onvif.org
Intelligent Video	Video motion detection, Active tampering alarm, AXIS Camera Application Platform enabling installation of additional applications
Trigger Events	Intelligent video
Event actions	File upload: FTP, HTTP, network share and email Notification: email, HTTP and TCP Video recording to edge storage Pre- and post-alarm video buffering External output activation
Data streaming	Event data
Built-in installation aids	Pixel counter
Casing	Tamper-resistant plastic casing, Polycarbonate transparent cover, Metal inner camera modulewith encapsulated electronics, Color: White NCS S 1002-B
Memory	128 MB RAM, 128 MB Flash
Power	Power over Ethernet IEEE 802.3af Class 2 (max. 4.2 W)
Connectors	RJ45 10BASE-T/100BASE-TX PoE
Edge Storage	Support for recording to network share (network-attached storage or file server)
Operating Conditions	0 °C to 50 °C (32 °F to 122 °F) Humidity 15–85% RH (non-condensing)
Approvals	EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, EN 55024, FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, C-tick AS/NZS CISPR 22 Class B, KCC KN22 Class B, KN24, EN 60950-1, UL
Weight	430 g (1.0 lb)
Included accessories	Installation Guide, Installation and Management Software CD, Key for tamper-proof screws, Windows decoder 1-user license
Video Management Software	AXIS Camera Companion (included), AXIS Camera Station and video management software from Axis’ Application Development Partners (not included). For more information, see www.axis.com/products/video/software
