SAMSUNG SNV-L6013RP

tidak termasuk pengiriman

• Max. 2M (1920 x 1080) resolution
• 30fps@all resolutions (H.264)
• 0.15Lux@F1.8 (Color), 0Lux@F1.8 (B/W : IR LED on)
• Built-in 3.6mm fixed lens
• H.264, MJPEG dual codec, Multiple streaming
• Motion detection, Tampering
• micro SD/SDHC memory slot, PoE
• IR viewable 15m, IP66, IK10
• Hallway view support (Rotate 90˚/270˚)
• LDC support (Lens Distortion Correction)

Qty:

Overview
Contact Us

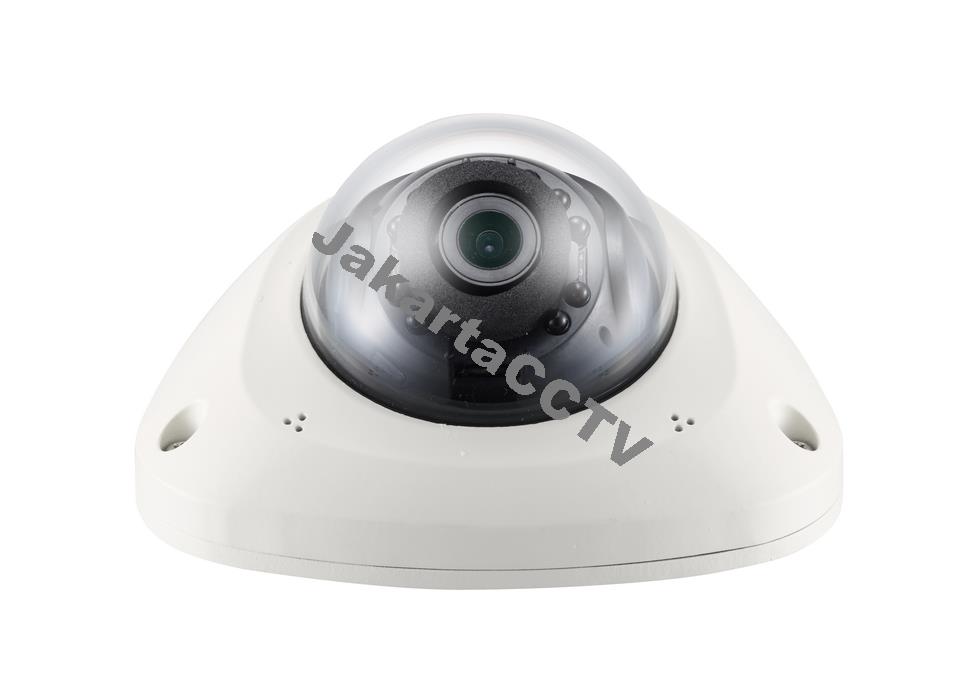

Jual IP Camera murah, SAMSUNG HANWHA TECHWIN SNV-L6013RP CCTV, yang bisa anda beli sekarang dari JakartaCCTV dengan harga kompetitif dan terjangkau. IP Kamera mini dome IR HANWHA ini dilengkapi dengan lensa 3.6 mm yang mampu menangkap gambar & video dengan resolusi hingga 2MP (pada 1080P HD) dan menstreamingnya pada berbagai output. Lensa ini terlindungi dalam casing anti air IP66 & anti pencurian / anti pengrusakan IK10 yang dikombinasikan dengan IR LED yang sanggup memantau sinar infra merah yang dipancarkan oleh objek dalam kegelapan total hingga jarak 15m di sekitar kamera.

Kamera ini cocok untuk penempatan di area outdoor maupun indoor karena diperlengkapi dengan tampering detection yang dapat mendeteksi ketika kamera diganggu, motion detection yang dapat mendeteksi dan merekam pergerakan yang tidak biasanya, Lens Distortion Correction yang dapat memperbaiki distorsi yang disebabkan oleh lensa kamera, hallway view mode yang dapat mengganti aspek rasio untuk pemantauan lebih optimal pada area vertikal seperti koridor, terowongan dsb., PoE (Power Over Ethernet) support, serta penyimpanan on board storage melalui Slot Micro SD Card.

FITUR & FUNGSI SAMSUNG SNV-L6013RP

Max. 2M (1920 x 1080) resolution
30fps@all resolutions (H.264)
0.15Lux@F1.8 (Color), 0Lux@F1.8 (B/W : IR LED on)
Built-in 3.6mm fixed lens
H.264, MJPEG dual codec, Multiple streaming
Motion detection, Tampering
micro SD/SDHC memory slot, PoE
IR viewable 15m, IP66, IK10
Hallway view support (Rotate 90˚/270˚)
LDC support (Lens Distortion Correction)

Hubungi kami sekarang untuk mendapatkan penawaran terbaik dengan harga distributor yang murah untuk IP Cam HANWHA SNV-L6013RP ini yang disertai dengan garansi resmi 2 tahun dari distributor HANWHA TECHWIN di Indonesia. Kami, JakartaCCTV akan dengan senang hati membimbing dan membantu anda memilih IP Kamera SAMSUNG atau paket CCTV lainnya yang paling cocok untuk kebutuhan anda serta memberikan penawaran untuk jasa pasang CCTV & proses settingnya.

VIDEO
Imaging Device	1/2.9" 2.19M CMOS
Total Pixels	2,000(H) x 1,121(V)
Effective Pixels	1,984(H) x 1,105(V)
Scanning System	Progressive
Min. Illumination	Color : 0.15Lux (1/30sec, F1.8), 0.003Lux (2sec, F1.8) B/W : 0Lux (IR LED on)
LENS
Focal Length (Zoom Ratio)	3.6mm fixed
Max. Aperture Ratio	F1.8
Angular Field of View	H : 86.5° / V : 47.8° / D : 101.2°
Min. Object Distance	0.5m (1.64ft)
Focus Control	Manual
Lens Type	DC auto iris
Mount Type	Board type
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range	-5° ~ 5° / 0° ~ 67° / 90°
OPERATIONAL
IR Viewable Length	15m (49.21ft)
Camera Title	Off / On (Displayed up to 15 characters)
Day & Night	True Day & Night
Backlight Compensation	Off / BLC
Contrast Enhancement	SSDR (Samsung Super Dynamic Range) (Off / On)
Digital Noise Reduction	SSNR (Off / On)
Motion Detection	Off / On (4ea rectangular zones)
Privacy Masking	Off / On (6ea rectangular zones)
Gain Control	Off / Low / Middle / High
White Balance	ATW / AWC / Manual / Indoor / Outdoor
LDC (Lens Distortion Correction)	Off / On (5 levels with min / max)
Electronic Shutter Speed	Minimum / Maximum / Anti flicker
Flip / Mirror	Flip / Mirror / Hallway view
Intelligent Video Analytics	Motion detection with metadata, Tampering
Alarm Triggers	Motion detection, Tampering detection, SD card error, NAS error
Alarm Events	File upload via FTP and E-mail, Local storage recording at event, Notification via E-mail
NETWORK
Ethernet	RJ-45 (10/100BASE-T )
Video Compression Format	H.264, MJPEG
Resolution	1920 x 1080, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 720 x 576, 640 x 480, 320 x 240
Max. Framerate	H.264 : Max. 30fps at all resolutions MJPEG : Max. 1fps at 1920 x 1080, 1280 x 960, 1280 x 720, 1024 x 768, Max. 15fps at other resolution
Video Quality Adjustment	H.264 : Target bitrate level control, MJPEG : Quality level control
Bitrate Control Method	H.264 : CBR or VBR, MJPEG : VBR
Streaming Capability	Multiple streaming (Up to 3 profiles)
Audio I/O	Line-in
Audio Compression Format	G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
Audio Communication	Uni-directional audio
IP	IPv4, IPv6
Protocol	TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security	HTTPS(SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication
Streaming Method	Unicast / Multicast
Max. User Access	6 users at unicast mode
Storage	micro SD/SDHC max. 32G, NAS - Motion images recorded in the SD memory card can be downloaded - Manual recording at local PC
Application Programming Interface	ONVIF Profile S, G, SUNAPI (HTTP API)
Webpage Language	English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Norwegian, Finnish
Web Viewer	Supported OS : Windows XP / VISTA / 7 / 8 / 8.1, MAC OS X 10.7 ~ 10.10 Supported Browser : Microsoft Internet Explorer (Ver. 8 ~ 11), Mozilla Firefox (Ver. 9 ~ 35), Google Chrome (Ver. 15 ~ 40), Apple Safari (Ver. 8.0.2(Mac OS X 10.10), 7.0.6 (Mac OS X 10.9), 6.0.2 (Mac OS X 10.8, 10.7 only), 5.1.7) * Mac OS X only
Central Management Software	SmartViewer
ENVIRONMENTAL
operating Temperature / Humidity	-30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH * Start up should be done at above -20°C (-4°F)
Storage Temperature / Humidity	-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Ingress Protection	IP66
Vandal Resistance	IK10 EN50155 class T3 (Vibration, Shock, Bump, Temperature) EN50121, ISO 16750-3 (Vibration), NEMA 250 type 4x
ELECTRICAL
Input Voltage / Current	PoE (IEEE802.3af, Class2)
Power Consumption	Max. 5.8W
MECHANICAL
Color / Material	Ivory / Metal
Dimensions (WxHxD)	99.0 x 52.0 x 100.0mm (3.9" x 2.05" x 3.94")
Weight	300g (0.66 lb)
