Imaging Device
|
1/2.8" PS Exmor 3.2M CMOS |
|
Total Pixels
|
2.065(H)x1.565(V) |
|
Effective Pixels
|
2.065(H)x1.553(V) |
|
Scanning System
|
Progressive scan |
|
Min.Illumination
|
Color : 0.1Lux (F1.2, 50IRE), 0.01Lux (30fps, 1sec, 50IRE), B/W : 0Lux (IR LED on) |
|
S/N RATIO
|
50dB |
|
Video Output
|
CVBS : 1.0 Vpp / 75 Ω composite, 720 x 480(N), 720 x 576(P), for installation DIP connector type |
|
Focal Lenght (Zoom Ratio)
|
3 ~ 8.5mm (2.8x) motorized varifocal |
|
Max. Aperture Ratio
|
F1.2 |
|
Angular Field of View
|
H : 100.12°(Wide) ~ 35.38°(Tele) / V : 73.76°(Wide) ~ 26.58°(Tele) |
|
Min. Object Distance
|
0.5m (1.64ft) |
|
Focus Control
|
Simple focus / Manual, Remote control via network (Manual, Simple focus, Day & Night) |
|
Lens Type
|
Manual / DC auto iris |
|
Mount Type
|
Board type |
|
Pan Range
|
0° ~ 354° |
|
Tilt Range
|
0° ~ 67° |
|
Rotate Range
|
0° ~ 355° |
|

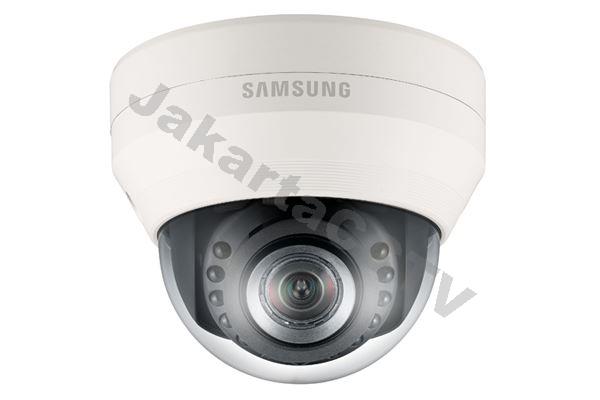

IR LED
|
12 units |
|
Viewable Length
|
25m (82.02ft) |
|
Camera Title
|
Off / On (Displayed up to 45 characters) |
|
Day/Night
|
Auto (ICR) / Color / B/W / External / Schedule |
|
Backlight Compensation
|
Off / BLC |
|
Wide Dynamic Range
|
120dB |
|
Contrast Enhancement
|
SSDR (Off / On) |
|
Noise Reduction
|
SSNR III (2D+3D noise filter) (Off / On) |
|
Digital Image Stabilization
|
Off / On |
|
Defog
|
Off / Auto / Manual |
|
Motion Detection
|
Off / On (4ea 4 points polygonal zones) |
|
Privasi masking
|
Off / On (32 zones with 4 points of polygonal) |
|
Gain Control
|
Low / Middle / High / Off |
|
White Balance
|
ATW / Outdoor / Indoor / Manual / AWC |
|
Electronic Shutter
|
Minimum / Maximum / Anti flicker (1 ~ 1/12,000sec) |
|
Mirror
|
Off / On |
|
Intelligent Video Analytics
|
Tampering, Virtual line, Enter / Exit, Appear / Disappear, Audio detection, Face detection with metadata |
|
Alarm I/O
|
Input 1ea / Output 1ea |
|
Alarm Triggers
|
Motion detection, Tampering, Audio detection, Face detecton, Video analytics, Network disconnection |
|
Alarm Events
|
File upload via FTP and E-mail, Notification via E-mail, TCP and HTTP Local storage (SD/SDHC/SDXC) recording at Network disconnected & Event (Alarm triggers), External output |
|
Ethernet
|
RJ-45 (10/100BASE-T) |
|
Video Compression
|
H.264 (MPEG-4 part 10/AVC), MJPEG |
|
Resolution
|
2048 x 1536, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 |
|
Max. Framerate
|
H.264 : Max. 30fps@2048 x 1536, Max 60fps@the other resolutions MJPEG : Max. 10fps@2048 x 1536 Max. 15fps@1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 Max. 30fps@800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 |
|
Smart Codec
|
Built-in (Area-based : 5ea, Face detection mode) |
|
Video Quality Adjustment
|
H.264 : Compression level, Target bitrate level control MJPEG : Quality level control |
|
Bitrate Control
|
H.264 : CBR or VBR, MJPEG : VBR |
|
Streaming Capability
|
Multiple streaming (Up to 10 profiles) |
|
Audio I/O
|
Mic(Line)-in / Built-in mic selectable via UI, Line-out (Mono, 1Vrms) 2.5V DC (4mA) powered 2K Ohm |
|
Audio Compression
|
G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps |
|
Audio Communication
|
Bi-directional audio |
|
IP
|
IPv4, IPv6 |
|
Protocol Support
|
CP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
|
Security
|
HTTPS(SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication |
|
Streaming Method
|
Unicast / Multicast |
|
Max. User Access
|
15 users at unicast mode |
|
Memory Slot
|
Micro SD/SDHC/SDXC Motion images recorded in the SDXC/SDHC/SD memory card can be downloaded |
|
Application Programming Interface
|
ONVIF profile S, HTTP API (SUNAPI) 2.0, SVNP 1.2 |
|
Webpage Language
|
English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Norwegian, Finnish |
|
Web Viewer
|
Supported OS : Windows XP / VISTA / 7, MAC OS 10.7 or higher Supported Browser : Internet Explorer 7.0 or Higher, Firefox 9 or higher, Google Chrome 15 or higher, Apple Safari 5.1 or higher |
|
Central Management Software
|
SmartViewer |
|
Operating Temperature
|
-10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH |
|
Storage Temperature
|
-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH |
|
Vandal Resistance
|
IK08 |
|
Input Voltage / Current
|
12V DC, PoE (IEEE802.3af class 3) |
|
Power Consumption (±10%)
|
Max. 10.0W (12V DC), Max. 11.0W (PoE) |
|
Color / Material
|
Ivory / Aluminium |
|
Dimensions (mm)
|
Ø132.1 x 107.6mm (Ø5.2" x 4.24") |
|
Weight
|
1Kg (2.2 lb) |
