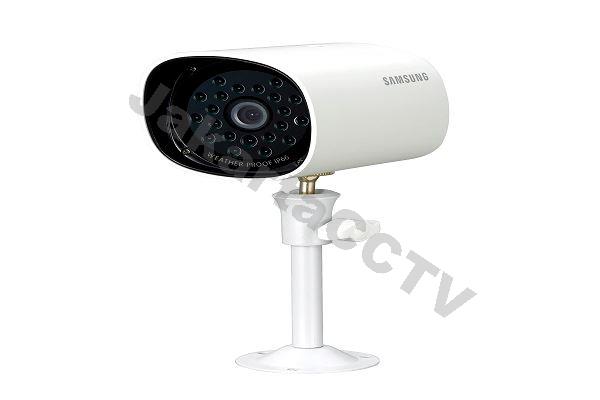

    Samsung SCO-1020R

    Telp untuk Harga
    • High resolution of 520 TVL
    • Minimum illumination 0 lux @ • F1.2 (IR LED on)IR distance 15m
    • Built-in 3.6mm fixed lens
    • Compact design
    • DNR (Digital Noise Reduction)
    • 12 VDC operations
    • IP66 rated
    Imaging Device 1/4" CMOS
    Total Pixels 680 (H) x 512 (V)
    Scanning System 2 : 1 interlace
    Synchronization Internal
    Frequency H: 15.734 KHz
    V: 59.94 Hz
    Horizontal Resolution 520 TVL
    Minimum Illumination 0 lux (IR LED on)
    S / N Ratio 46 dB (AGC off, weight on)
    Video Output CVBS: 1.0 Vpp / 75 Ω composite
    Lens
    Focal Length (Zoom Ratio) 3.6 mm fixed lens
    Maximum Aperture Ratio F2.0
    Angular Field of View H:56°
    V:42°
    Minimum Object Distance 0.65' (0.2 m)
    Lens Type Fixed
    Mount Type Board type
    Operational
    Day & Night Auto
    Digital Noise Reduction (DNR) Auto
    Gain Control Auto
    White Balance Auto (3,200°K to 6,500°K)
    Shutter Modes Auto (rolling shutter)
    IR Distance 15 m ( IR LED 15 EA)
    Environmental
    Operating Temperature / Humidity 32 to 104°F (0 to 40°C)
    20% to 85% RH
    Ingress Protection Rating IP66
    Electrical
    Input Voltage/Current 12 VDC
    Power Consumption 2.2 W
    Mechanical
    Color / Material White / plastic
    Dimensions (W x H x D) 2.58 x 2.58 x 3.72" (65.50 x 65.50 x 94.60 mm)
    Weight 0.66 lb (0.29 kg)
    *
    *
    *
