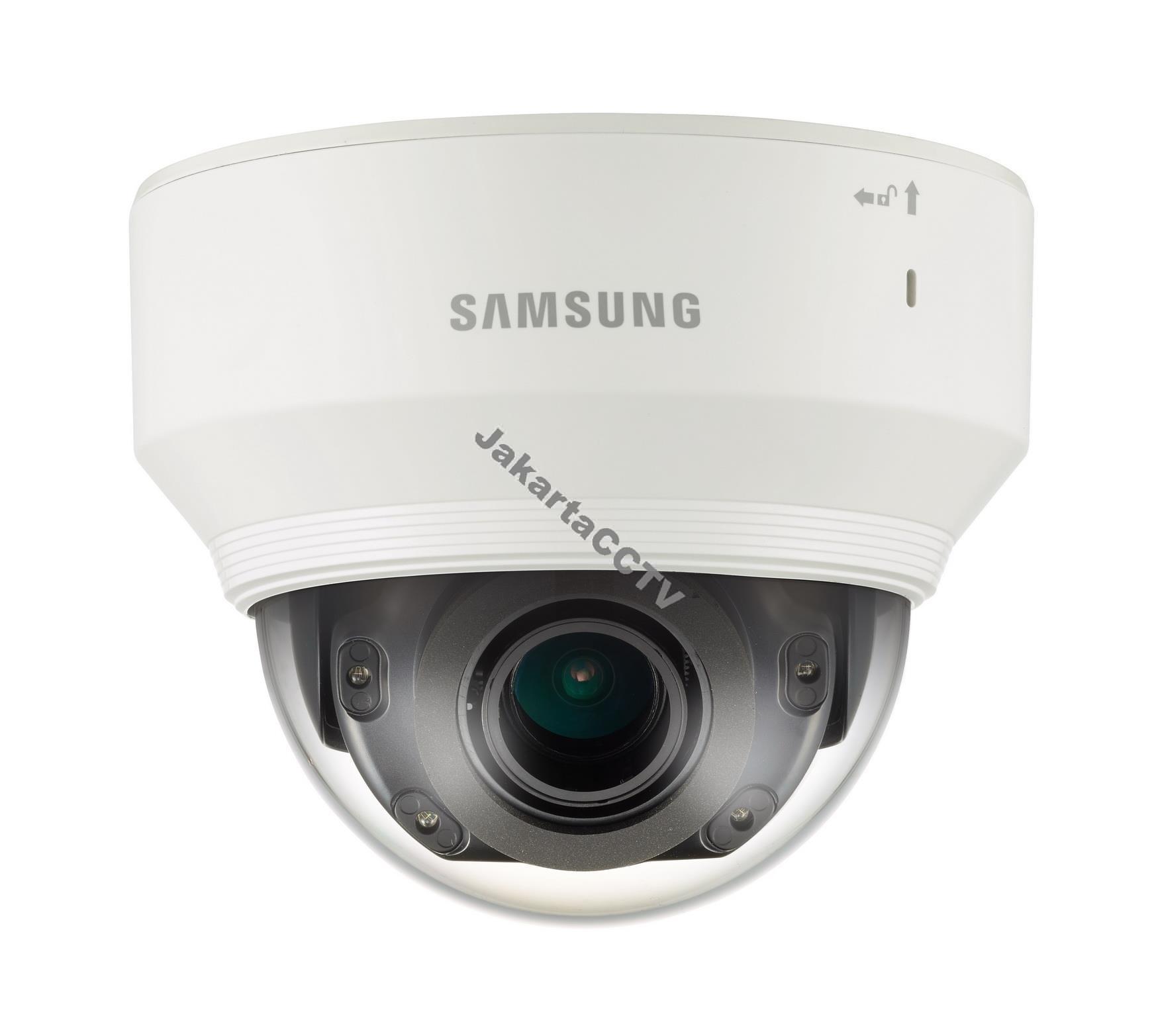

SAMSUNG PND-9080RP

tidak termasuk pengiriman

• Max. 12megapixel (4000 x 3000) resolution
• Max. 20fps@12M, Max.30fps@8M
• 0.3Lux@F1.6 (Color), 0Lux (B/W : IR LED on)
• 4.5 ~ 10mm (2.2x) motorized varifocal lens
• H.265, H.264, MJPEG suppport
• Day & Night (ICR), WDR (120dB), Simple focus, P-Iris
• Motion detection, Defocus detection, Tampering
• SD/SDHC/SDXC memoty slot (Max, 128GB), NAS, Local PC support
• Hallway view (Rotate 90˚ / 270˚)
• WiseStream support, Digital auto tracking
• IK08, Bi-directional audio support

Qty:

Overview
Contact Us

Jual IP Camera murah, SAMSUNG HANWHA TECHWIN PND-9080RP CCTV, yang bisa anda beli sekarang dari JakartaCCTV dengan harga kompetitif dan terjangkau. IP Kamera dome HANWHA ini dilengkapi dengan lensa motorized vari-focal 4.5-10 mm yang terlindungi dalam casing anti goncangan IK08 dan mampu menyesuaikan bukaan lensa kamera secara otomatis ketika sedang beroperasi, sehingga menghasilkan fleksibilitas pada area pandang kamera sekuriti, serta menangkap gambar & video dengan resolusi hingga 12MP (pada 4K Ultra HD).

Kamera ini cocok untuk penempatan di area indoor karena diperlengkapi dengan Simple Focus, Filter IR Cut Day/Night yang dapat menampilkan image berwarna pada siang hari dan beralih ke image monochrome pada saat suasana berangsur gelap, teknologi True WDR yang digunakan untuk menangkap gambar yang jelas pada kondisi dimana objek dikelilingi oleh cahaya belakang yang kuat/terang, sambil menjaga latar belakangnya agar dapat terlihat jelas, tampering detection yang dapat mendeteksi ketika kamera diganggu, motion detection yang dapat mendeteksi dan merekam pergerakan yang tidak biasanya, defocus detection yang dapat mendeteksi ketika kamera sedang kehilangan fokus serta berbagai fitur cerdik lainnya.

Di samping itu kamera ini juga mendukung hallway view mode yang dapat mengganti aspek rasio untuk pemantauan lebih optimal pada area vertikal seperti koridor, terowongan dsb., penyimpanan on board melalui SD Card Slot 128GB, teknologi WiseStream yang dapat mengkompress data hingga 75% untuk efisiensi penyimpanan dan bandwidth, serta komunikasi audio dua arah yang memungkinkan penggunanya untuk mendengar dan berbicara dengan subjek yang sedang diawasi.

FITUR & FUNGSI SAMSUNG PND-9080RP

Max. 12megapixel (4000 x 3000) resolution
Max. 20fps@12M, Max.30fps@8M
0.3Lux@F1.6 (Color), 0Lux (B/W : IR LED on)
4.5 ~ 10mm (2.2x) motorized varifocal lens
H.265, H.264, MJPEG suppport
Day & Night (ICR), WDR (120dB), Simple focus, P-Iris
Motion detection, Defocus detection, Tampering
SD/SDHC/SDXC memoty slot (Max, 128GB), NAS, Local PC support
Hallway view (Rotate 90˚ / 270˚)
WiseStream support, Digital auto tracking
IK08, Bi-directional audio support

Hubungi kami sekarang untuk mendapatkan penawaran terbaik dengan harga distributor yang murah untuk IP Cam HANWHA PND-9080RP ini yang disertai dengan garansi resmi 2 tahun dari distributor HANWHA TECHWIN di Indonesia. Kami, JakartaCCTV akan dengan senang hati membimbing dan membantu anda memilih IP Kamera SAMSUNG atau paket CCTV lainnya yang paling cocok untuk kebutuhan anda serta memberikan penawaran untuk jasa pasang CCTV & proses settingnya.

VIDEO
Imaging Device	1/1.7" 12.4M CMOS
Total Pixels / Effective Pixels	4,168(H) x 3,062(V) / 4,072(H) x 3,046(V)
Scanning System	Progressive
Min. Illumination	Color : 0.3Lux (1/30sec, F1.6, 30IRE), 0.01Lux (2sec, F1.6, 30IRE) B/W : 0Lux (IR LED on)
S / N Ratio	50dB
Video output	CVBS : 1.0 Vpp / 75Ω composite, 702 x 576, for installation DIP connector type
LENS
Focal Length (Zoom Ratio)	4.5 ~ 10mm (2.2x) motorized varifocal
Max. Aperture Ratio	F1.6
Angular Field of View	[4096 x 2160] H : 100.3°(Wide) ~ 45.6°(Tele) / V : 49.7°(Wide) ~ 24.0°(Tele) [3840 x 2160] H : 92.3°(Wide) ~ 42.6°(Tele) / V : 49.7°(Wide) ~ 24.0°(Tele)
Min. Object Distance	0.5m (1.64ft)
Focus Control	Simple focus (Motorized V/F) / Manual, Remote control via network (Manual, Simple focus)
Lens Type / Mount Type	P-Iris mode / Board-in type
PAN / TILT / ROTATE
Pan / Tilt / Rotate Range	0° ~ 354° / 0° ~ 67° / 0° ~ 355°
OPERATIONAL
Viewable Length	30m (98.43ft)
Camera Title	Off / On (Displayed up to 60 characters) - W/W : English / Numeric / Special characters - China : English / Numeric / Special / Chinese characters - Common : Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution
Day & Night	Auto (ICR) / Color / B/W / External / Schedule
Backlight Compensation	Off / BLC / WDR
Wide Dynamic Range	120dB
Contrast Enhancement	SSDR (Off / On)
Digital Noise Reduction	SSNR (2D+3D noise filter) (Off / On)
Defog	Off / Auto / Manual
Motion Detection	Off / On (8ea, Polygonal)
Privacy Masking	Off / On (16ea, Polygonal) - Color : Gray / Green / Red / Blue / Black / White
Gain Control	Off / Low / Middle / High
White Balance	ATW / AWC / Manual / Indoor / Outdoor (Include mercury & sodium)
Electronic Shutter Speed	Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec)
Flip / Mirror	Off / On, Hallway : 90° /270°
Intelligent Video Analytics	Tampering (Scene change), Virtual line, Enter / Exit, (Dis)Appear, Audio detection, Defocus detection, Digital auto tracking - with metadata
Alarm I/O	Input 1ea / Output 1ea
Alarm Triggers	Alarm input, Motion detection, Video analytics, Audio detection, Network disconnect
Alarm Events	File upload via FTP and E-mail, Notification via E-mail Local storage (SD/SDHC/SDXC) or NAS recording at event triggers, External output
Pixel Counter	Support (Plug-in viewer only)
NETWORK
Ethernet	RJ-45 (10/100/1000BASE-T)
Video Compression Format	H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG
Resolution	[8M mode] 4096 x 2160, 3840 x 2160, 2592 x 1944, 2592 x 1464, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 [12M mode] 4000 x 3000, 3840 x 2160, 2592 x 1944, 2592 x 1464, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
Max. Framerate	H.265 / H.264 : 20fps@4000 x 3000, 30fps@4096 x 2160 MJPEG : 2fps@4000 x 3000 ~ 2592 x 1464, 15fps@1920 x 1080 ~ 320 x 240
Smart Codec / WiseStream	Manual mode (Area-based : 5ea) / Support
Video Quality Adjustment	H.265 / H.264 : Target bitrate level control, MJPEG : Quality level control
Bitrate Control Method	H.265 / H.264 : CBR or VBR, MJPEG : VBR
Streaming Capability	Multiple streaming (Up to 3 profiles)
Audio In	Selectable (Mic in / Line in), Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm
Audio out	Line out (3.5mm mono jack), Max output level : 1Vrms
Audio Compression Format	G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz, G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps, AAC-LC : 48Kbps at 16KHz
Audio Communication	Bi-directional audio (2-way)
IP	IPv4, IPv6
Protocol	TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security	HTTPS(SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication (EAP-TLS, EAP-LEAP)
Streaming Method	Unicast / Multicast
Max. User Access	15 users at unicast mode
Edge Storage	SD/SDHC/SDXC (128GB) - Motion images recorded in the SD/SDHC/SDXC memory card can be downloaded, Camera can detect automatically when the memory is connected, Memory status display (Normal / Error / Active / Formatting / Lock), NAS (Network Attached Storage), Local PC for instant recording (Plug-in viewer only)
Application Programming Interface	ONVIF profile S/G, SUNAPI (HTTP API), SVNP, Wisenet Open Platform
Webpage Language	English, French, German, Spanish, Italian, Chinese, Russian, Japanese, Swedish, Portuguese, Turkish, Polish, Czech, Dutch, Hungary, Greek
Web Viewer	Supported OS : Windows 7, 8.1, 10, Mac OS X 10.9, 10.10, 10.11 Plug-in free Webviewer - Supported Browser : Google Chrome 47, MS Edge 20 Plug-in Webviewer - Supported Browser : MS Explore 11, Mozilla Firefox 43, Apple Safari 9 * Mac OS X only
Central Management Software	SmartViewer
ENVIRONMENTAL
operating Temperature / Humidity	-30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH * Start up should be done at above -10°C (14°F)
Storage Temperature / Humidity	-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
Vandal Resistance	IK08
ELECTRICAL
Input Voltage / Current	12V DC, PoE (IEEE802.3af, Class3)
Power Consumption	12V DC : Max. 9.5W, PoE : Max. 10.5W
MECHANICAL
Color / Material	Ivory / Polycarbonate(PC) + Aluminum
Dimensions (WxHxD)	Ø140.8 x 113.0mm (Ø5.54" x 4.45")
Weight	610g (1.34 lb)
