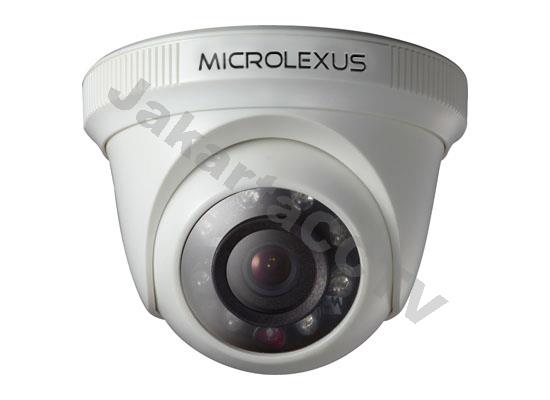

| Camera |
| Image Sensor: |
1/4'' DIS |
| Signal System: |
PAL/NTSC |
| Effective Pixels: |
640(H)x480(V) |
| Min. Illumination: |
0.1 Lux @ (F1.2, AGC ON), 0 Lux with IR
0.2 Lux @ (F1.8, AGC ON), 0 Lux with IR |
| Shutter Time: |
1/25(1/30) s to 1/15,000 s |
| Lens: |
2.8 mm @ F1.8 (3.6 mm, 6 mm optional)
Angle of view: 66.2° (2.8 mm) |
| Lens Mount: |
M12 |
| Adjustment Range: |
Pan: 0 - 360°; Tilt: 0 - 85°; Rotation: 0 - 360° |
| Day& Night: |
IR cut filter with auto switch |
| Horizontal Resolution: |
500 TVL |
| Synchronization: |
Internal Synchronization |
| Video Output: |
1Vp-p Composite Output (75Ω/BNC) |
| S/N Ratio: |
More than 52dB |
|
