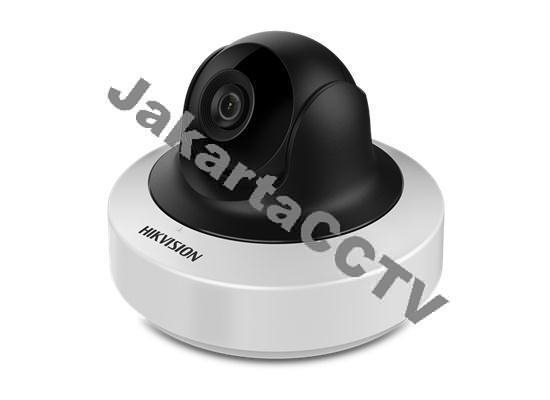

HIKVISION DS-2CD2F22FWD-I(W)(S)

tidak termasuk pengiriman

• Up to 2.0 megapixel high resolution
• Full HD1080p video
• Dual stream
• 120dB Wide Dynamic Range
• Pan & tilt rotation
• Support on board storage, up to 128 GB
• DC12V & PoE
• Support H.264+
• Up to 10m IR Range
• Audio/Alarm IO (-S)
• Built-in Wifi (-W)

Qty:

Overview
Contact Us

Jual IP Camera HIKVISION DS-2CD2F22FWD-I(W)(S) dengan harga murah, kompetitif dan terjangkau di JakartaCCTV. IP Kamera HIKVISION seri Mini Pan-Tilt ini mampu menstreaming dua video dengan resolusi utama hingga 2.0 MP, dan menangkap gambar dengan lensa 2.8 / 4.0 / 6.0 mm yang dioptimasi lebih jauh dengan jangkauan infra merah 10 meter yang membuatnya dapat memantau objek dalam keadaan gelap gulita hingga jarak 10 meter serta fungsi pan-tilt, dimana lensa kamera dapat berotasi secara vertical maupun horizontal.

Kamera ini juga dilengkapi sensor gambar WDR yang mampu menangkap beberapa gambar yang terexpose dalam jangka waktu singkat & panjang, lalu menggabungkannya dalam single frame. Selain itu kamera ini juga mensupport penyimpanan on board hingga 128 GB, pemantauan mobile, deteksi gangguan & line crossing (yang dapat memberitahu penggunanya saat terjadi perampokan ataupun gangguan pada area yang dilindungi, atau ketika seseorang melewati/menerobos area tertentu), yang dikombinasikan dengan teknologi VCA (yang mengizinkan kamera untuk menganalisa rekaman live video dan mengadakan peringatan/tindakan pre-emptive) sehingga membuat kamera ini cocok untuk sistem pemantauan indoor.

FITUR & FUNGSI HIKVISION DS-2CD2F22FWD-I(W)(S)

Up to 2.0 megapixel high resolution
Full HD1080p video
Dual stream
120dB Wide Dynamic Range
Pan & tilt rotation
Support on board storage, up to 128 GB
DC12V & PoE
Support H.264+
Up to 10m IR Range
Audio/Alarm IO (-S)
Built-in Wifi (-W)

Hubungi kami sekarang untuk mendapatkan penawaran terbaik dengan harga distributor yang murah untuk IP Cam HIKVISION DS-2CD2F22FWD-I(W)(S) ini yang disertai dengan garansi resmi 2 tahun dari distributor HIKVISION di Indonesia. Kami, JakartaCCTV akan dengan senang hati membimbing dan membantu anda memilih IP Kamera HIKVISION atau paket CCTV lainnya yang paling cocok untuk kebutuhan anda hingga proses pasang & setting nya.

Camera
Image Sensor	1/2.8" Progressive Scan CMOS
Min. Illumination	0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR
Shutter time	1/3 s to 1/10,000 s
Lens	2.8mm, 4mm, 6mm @ F2.0 angle of view: 109.4°(2.8mm), 90°(4mm), 53.9°(6mm)
Lens Mount	M12
Adjustment Range	Pan: -90° - 90°, Tilt: 0° - 75°
Day& Night	IR cut filter with auto switch
Wide Dynamic Range	120 dB
Digital noise reduction	3D DNR
Compression Standard
Video Compression	H.264/MJPEG/H.264+
H.264 code profile	Main Profile
Video bit rate	32Kbps~16Mbps
Dual Stream	Yes
Max. Image Resolution	1920 x 1080
Frame Rate	50Hz: 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720) 60Hz: 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720)
Main Stream	Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser
BLC	Yes, zone configurable
ROI	Support
Network
Network Storage	NAS (Support NFS,SMB/CIFS), ANR
Alarm Trigger	Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception
Protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Security	One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering
System Compatibility	ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
Interface
Audio	1-ch 3.5 mm audio in (Mic in/Line in)/out interface (-S model)
Communication Interface	1 RJ45 10M / 100M Ethernet interface
Alarm	1x alarm I/O *only for –S models
On-board storage	Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button	Yes
Wi-Fi Specification (-W)
Wireless Standards	IEEE802.11b, 802.11g, 802.11n
Frequency Range	2.4 GHz ~ 2.4835 GHz
Channel Bandwidth	20/40MHz Support
Modulation Mode	802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM
Security	64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transmission Rate	11b: 11Mbps 11g: 54Mbps 11n: up to 150Mbps
Wireless Range	50m(depend on environment)
General
Operating Conditions	-10°C ~ 40°C (14°F ~ 104°F), Humidity 95% or less (non-condensing)
Power Supply	12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption	Max. 5W (Max. 7 W with IR cut filter on, max. 9W with pan & tilt rotation)
IR Range	10 meters
Dimensions	Φ119.93×87.08 mm (4.7“x3.4“)
Weight	500g (1.1 lbs)
NOTE	"-W" series support Wi-Fi (802.11b/g/n) and the modules with Wi-Fi function don’t support the 802.1X protocol.
