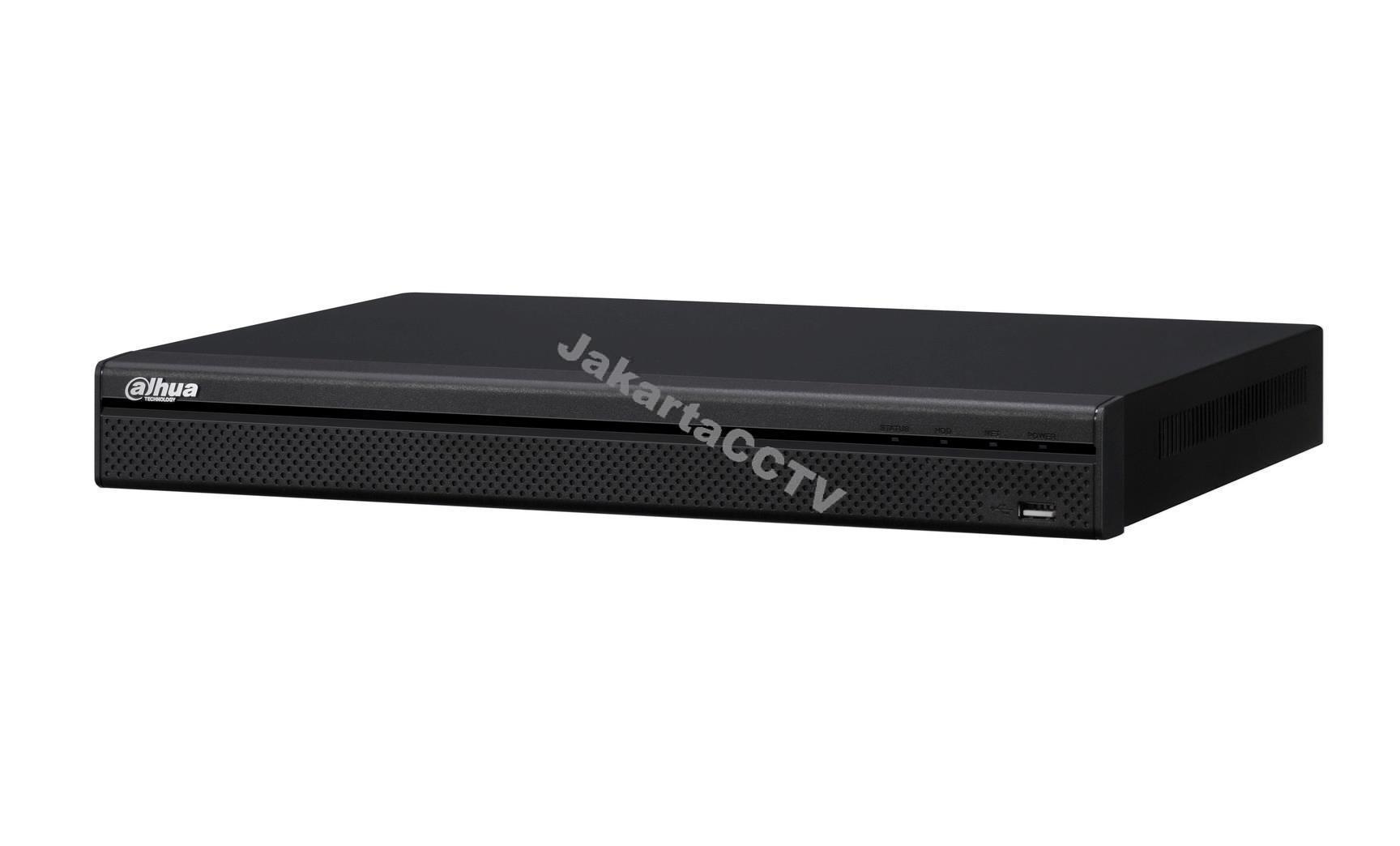

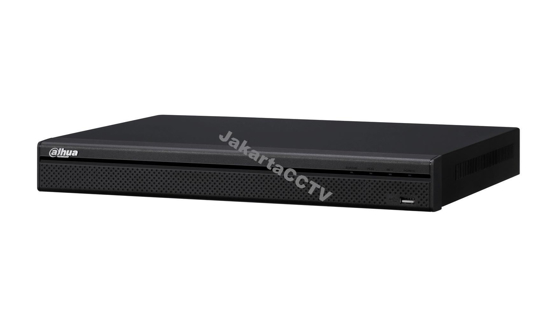

DAHUA HCVR4216AN-S3

tidak termasuk pengiriman

• Embedded processor
• Support HDCVI/CVBS video inputs
• Max 18 channels IP camera inputs
• Max 72Mbps Incoming Bandwidth
• Long transmission distance over coax cable
• Support 2 SATA HDD, up to 16TB

Qty:

Overview
Contact Us

Jual DVR DAHUA HCVR4216AN-S3 dengan harga murah, kompetitif dan terjangkau di JakartaCCTV. DVR (Digital Video Recorder) DAHUA seri HCVR4000 ini mampu menstreaming video dengan dua resolusi yang berbeda secara serentak dan merekamnya dengan resolusi hingga 1080N. DVR ini menerima audio input dari 1 saluran RCA port dan video input dari 16 saluran kamera analog, yang bisa dialihkan ke 16 saluran IP camera, dengan tambahan 2 saluran IP camera yang berdedikasi, yang berarti DVR ini mampu mensupport hingga 18 saluran IP kamera.

Video yang direkam bisa diputar ulang secara sinkron ke 16 channel pada saat yang bersamaan dan ditampilkan pada 1 format HDMI, dan 1 format VGA. File yang sudah direkam lalu bisa disimpan ke 2 HDD SATA Port dengan kapasitas hingga 8TB per disk, atau diback up ke perangkat eksternal melalui 2 USB Port atau back up ke jaringan melalui Ethernet Port yang tersedia pada DVR.

Selain itu, DVR DAHUA ini mendukung PTZ control, berbagai macam merek network camera.

FITUR & FUNGSI DAHUA HCVR4216AN-S3

Embedded processor
Support HDCVI/CVBS video inputs
Max 18 channels IP camera inputs
Max 72Mbps Incoming Bandwidth
Long transmission distance over coax cable
Support 2 SATA HDD, up to 16TB

Selain garansi resmi selama 2 tahun dari distributor DAHUA di Indonesia, anda juga akan mendapatkan tips yang aman dan berguna dalam memilih, membeli & memasang Digital Video Recorder DAHUA yang sesuai dengan kebutuhan anda dengan harga distributor yang murah jika anda membeli produk ini dari kami, JakartaCCTV. Jadi tunggu apalagi ? Hubungi kami sekarang untuk mendapatkan DVR DAHUA HCVR4216AN-S3 ini atau jika anda masih memiliki pertanyaan lebih lanjut mengenai produk ini atau paket CCTV kami lainnya.

System
Main Processor	Embedded Processor
Operating System	Embedded LINUX
Display
Interface	1 HDMI ,1 VGA
Resolution	1920×1080, 1280×1024, 1280×720, 1024×768
Multi-screen Display	1/4/8/9/16/25
OSD	Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Video Detection and Alarm
Trigger Events	Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection	Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering
Alarm input	N/A
Relay Output	N/A
Playback and Backup
Playback	1/4/9/16
Search Mode	Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function	Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode	USB Device/Network
Storage
Internal HDD	2 SATA Ports, up to 8TB capacity for each disk
eSATA	N/A
Auxiliary Interface
USB	2 USB Ports (2 USB 2.0)
RS232	N/A
RS485	1 Port, for PTZ Control
HDCVI Camera Input	16 Channel
IP Camera Input	16+2 Channel, each channel up to 5MP
Audio In/Out	1/1, RCA
Two-way Talk	Reuse audio in/out, RCA
Recording
Compression	H.264
Resolution	1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF
Record Rate	Main Stream: 1080N(12fps)/720P(15fps)/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps) Sub stream: CIF/QCIF(1~7fps)
Bit Rate	1Kbps ~ 6144Kbps Per Channel
Record Mode	Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval	1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Network
Interface	1 RJ-45 Port (100M)
Network Function	HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Support Dahua IP camera, DVR, NVS, etc.)
Max. User Access	128 users
Smart Phone	iPhone, iPad, Android
Interoperability	ONVIF 2.42, CGI Conformant
Electrical
Power Supply	DC12V/4A
Power Consumption	<15W (Without HDD)
Environmental
Operating Conditions	-10°C ~ +55°C (+14°F ~ +131°F), 0~ 90% RH
Storage Conditions	-20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH
Construction
Dimensions	1U, 375mm×287mm×53mm (14.8" x 11.3" x 2.1")
Net Weight	2.35kg (5.2 lb) (without HDD)
Gross Weight	3.2kg (7.05lb)
Installation	Desktop installation
Certifications
Certifications	FCC: Part 15 Subpart B ICES 003 Issue 6 CE: EN 55032: 2012+AC:2013 (Class B) EN 55024 : 2010 EN 61000-3-2 : 2014 EN 50130-4: 2011 EN 61000-3-3 : 2013 UL 60950-1 and CAN/CSA C22.2 No. 60950-1-07
