Brand: CP Plus

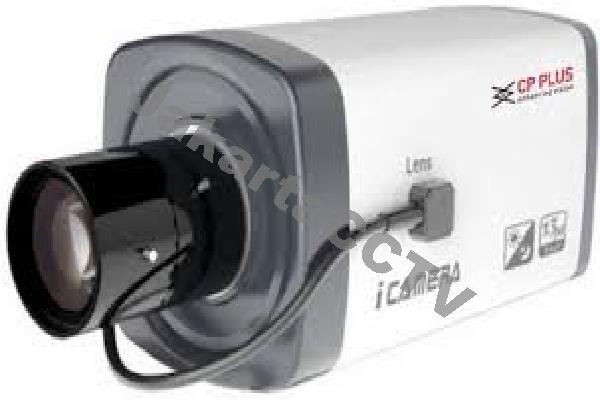

CP Plus CP-UNC-BP10C

Rp 4.000.000

tidak termasuk pengiriman

1/3” 1.3 Megapixel Aptina CMOS image sensor
High-Performance TI DaVinci series DSP
H.264/MJPEG video compression and JPEG image capture
Upto 1.3M(1280×960) / 720P(1280×720) / D1(704×576/704×480) Image Resolution
Dual encoding streams supported
Supports PoE(IEEE802.3af)
Max 25/30fps@720P(1280×720), [email protected](1280×960) Resolution
Buit in Web Server, CMOB & KVMS(CMS)

Qty:

Overview
Contact Us

Specifications
Image Sensor	1/3” 1.3 Megapixel CMOS
Minimum Illumination	0.1LUX/F1.2
Shutter Speed	Auto/Manual, 1/3~1/10000s
White Balance	Auto/Manual
AGC control	Auto/Manual
Lens	CS Mount Lens
S/N Ratio	more than 50 dB
Video Compression	H.264/MJPEG
Resolution	1.3M(1280×960) / 720P(1280×720) / D1(704×576/704×480)
Video Output	1 channel BNC(1.0Vp-p, 75Ω)
Frame Rate	1~25fps
ICR	Supported
Snapshot	Fastest 1fps JPEG capture
Event Notification	HTTP, FTP, SMTP
Interface	RJ-45 (10/100Base-T), RS485
Protocol	HTTP, TCP/IP, IPv4/IPv6, ARP, IGMP, ICMP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, UPNP, NTP, Bonjour, SNMP, Onvif
Auto Iris	Yes
Operating Temperature	-10°C~+50°C, 10%~90%
Power Source	DC12V, PoE
Power Consumption	Max.2.5W
Regulatory	CE, FCC and RoHS
Dimension	66.2mm×62.8mm×131mm
Weight	0.2kg

Namamu *

Email Anda *

Pertanyaan *

Specifications
Image Sensor	1/3” 1.3 Megapixel CMOS
Minimum Illumination	0.1LUX/F1.2
Shutter Speed	Auto/Manual, 1/3~1/10000s
White Balance	Auto/Manual
AGC control	Auto/Manual
Lens	CS Mount Lens
S/N Ratio	more than 50 dB
Video Compression	H.264/MJPEG
Resolution	1.3M(1280×960) / 720P(1280×720) / D1(704×576/704×480)
Video Output	1 channel BNC(1.0Vp-p, 75Ω)
Frame Rate	1~25fps
ICR	Supported
Snapshot	Fastest 1fps JPEG capture
Event Notification	HTTP, FTP, SMTP
Interface	RJ-45 (10/100Base-T), RS485
Protocol	HTTP, TCP/IP, IPv4/IPv6, ARP, IGMP, ICMP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, UPNP, NTP, Bonjour, SNMP, Onvif
Auto Iris	Yes
Operating Temperature	-10°C~+50°C, 10%~90%
Power Source	DC12V, PoE
Power Consumption	Max.2.5W
Regulatory	CE, FCC and RoHS
Dimension	66.2mm×62.8mm×131mm
Weight	0.2kg
