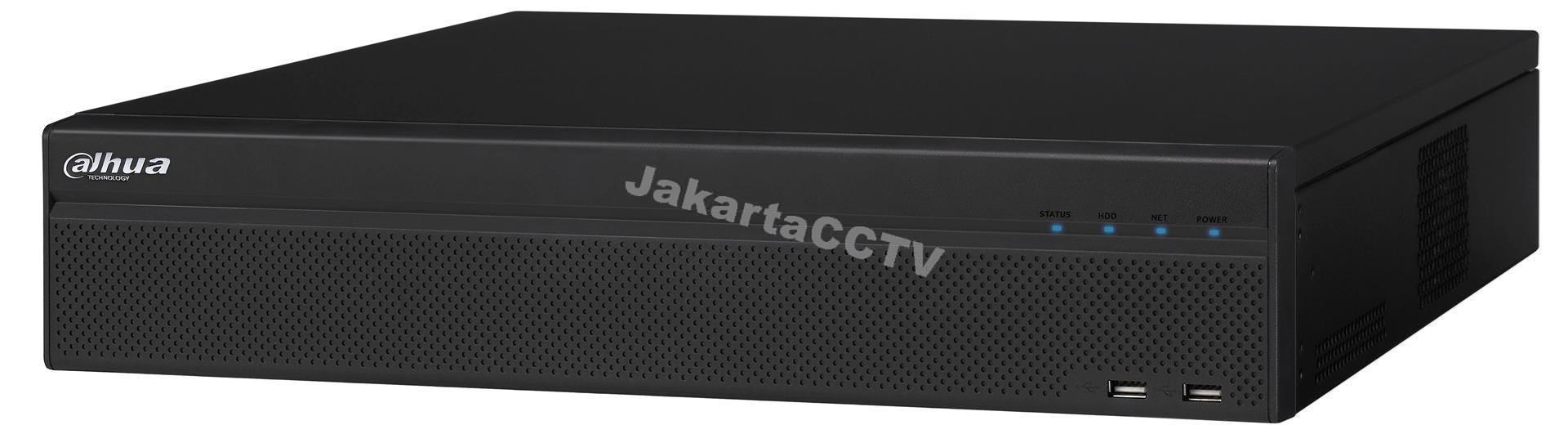

DAHUA HCVR5832S-S2

tidak termasuk pengiriman

• Tribrid: Each channel supports Analog/HDCVI/IP Video input
• H.264 dual-stream video compression
• All channel 720P realtime recording or 1080P non-realtime recording
• 2HDMI/VGA/TV simultaneous video output
• 16 channel synchronous realtime playback, GRID interface & smart search
• Support Multi-brand network cameras.
• ONVIF Version 2.4 conformance
• 3D intelligent positioning with Dahua PTZ dome camera
• Support 8 SATA HDDs up to 48TB, 1 eSATA, 4 USB2.0
• Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS)&Smart Phone(DMSS)

Qty:

Overview
Contact Us

Jual DVR DAHUA HCVR5832S-S2 dengan harga murah, kompetitif dan terjangkau di JakartaCCTV. DVR (Digital Video Recorder) DAHUA seri HCVR5000 ini mampu menstreaming video dengan dua resolusi yang berbeda secara serentak dan merekamnya dengan resolusi hingga 1080P. DVR ini menerima audio input dari 16 saluran BNC port dan video input dari 32 saluran kamera analog, yang bisa dialihkan ke 32 saluran IP camera.

Video yang direkam bisa diputar ulang secara sinkron ke 16 channel pada saat yang bersamaan dan ditampilkan pada 2 format HDMI, 1 format VGA, dan 1 format TV. File yang sudah direkam lalu bisa disimpan ke 8 HDD SATA Port dengan kapasitas hingga 6 TB per disk, atau diback up ke perangkat eksternal melalui 1 eSATA port, 4 USB Port atau back up ke jaringan melalui Ethernet Port yang tersedia pada DVR.

Selain dari fungsi perekaman, DVR ini juga memiliki 16 saluran alarm masuk yang bisa dihubungkan ke sensor eksternal seperti sensor pendeteksi gerakan infra merah, sensor pintu magnetis, sensor pendeteksi jendela/kaca pecah, sensor pendeteksi asap dll. Pengguna lalu bisa mengkonfigurasi dan menghubungkan DVR ke perangkat alarm agar bisa bereaksi and bertindak sepatutnya jika sensor sensor ini terpicu dengan 6 saluran alarm keluar (cth : membunyikan sirine, dsb.). Selain itu, DVR DAHUA ini mendukung PTZ control, berbagai macam merek network camera, dan secara resmi mematuhi standard ONVIF, yang membuat perangkat ini sebuah tambahan yang penting dan serba guna bagi sistem pemantauan anda.

FITUR & FUNGSI DAHUA HCVR5832S-S2

Tribrid: Each channel supports Analog/HDCVI/IP Video input
H.264 dual-stream video compression
All channel 720P realtime recording or 1080P non-realtime recording
2HDMI/VGA/TV simultaneous video output
16 channel synchronous realtime playback, GRID interface & smart search
Support Multi-brand network cameras.
ONVIF Version 2.4 conformance
3D intelligent positioning with Dahua PTZ dome camera
Support 8 SATA HDDs up to 48TB, 1 eSATA, 4 USB2.0
Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS)&Smart Phone(DMSS)

Selain garansi resmi selama 2 tahun dari distributor DAHUA di Indonesia, anda juga akan mendapatkan tips yang aman dan berguna dalam memilih, membeli & memasang Digital Video Recorder DAHUA yang sesuai dengan kebutuhan anda dengan harga distributor yang murah jika anda membeli produk ini dari kami, JakartaCCTV. Jadi tunggu apalagi ? Hubungi kami sekarang untuk mendapatkan DVR DAHUA HCVR5832S-S2 ini atau jika anda masih memiliki pertanyaan lebih lanjut mengenai produk ini atau paket CCTV kami lainnya.

System
Main Processor	Embedded Processor
Operating System	Embedded LINUX
Video
Input	32 channel, BNC
Standard	Analog : NTSC/PAL HDCVI : 1080P/720P HDCVI Camera IP : All channels support 1080P/720P IP Camera
Audio
Input	16 channel, BNC
Output	1 channel, BNC
Two-way Talk	1 channel Input,1 channel Output, BNC
Display
Interface	2 HDMI, 1 VGA, 1 TV
Resolution	1920× 1080, 1280× 1024, 1280× 720, 1024× 768
Display Split	1/4/8/9/16/25/36
Privacy Masking	4 rectangular zones (each camera)
OSD	Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Video/Audio Compression	H.264/G.711
Record Rate	Main Stream : 1080P(1~12/15fps)/720P/960H/D1/HD1/2CIF/CIF(1~25/30fps) Extra Stream : CIF/QCIF(1~25/30fps),D1
Bit Rate	48~4096Kb/s
Record Mode	Manual, Schedule(Regular(Continuous), MD), Stop
Record Interval	1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection
Trigger Events	Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips
Video Detection	Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Alarm Input	16 channel
Relay Output	6 channel
Playback & Backup
Sync Playback	1/4/8/16
Search Mode	Time/Date, MD & Exact search (accurate to second)
Playback Functions	Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode	USB Device/eSATA Device/Internal SATA burner/Network
Network
Ethernet	RJ-45 port (10/100M/1000M)
Network Functions	HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P
Max. User Access	128 users
Smart Phone	iPhone, iPad, Android, Windows Phone
Storage
Internal HDD	8 SATA ports(8HDDs or 6HDDs+1CD/DVD-RW), up to 48TB
External HDD	1 eSATA port
Auxiliary Interface
USB Interface	4 ports (2 Rear), USB2.0
RS232	1 port, For PC communication & Keyboard
RS485	1 port RS485 for PTZ control,1 port RS422 for Keyboard
General
Power Supply	AC 100~240 V, 50/60 Hz
Power Consumption	40W(Without HDD)
Working Environment	-10°C ~+55°C/10%~90%RH/86~106kpa
Dimension (W× D× H)	2U, 440mm×460mm×89mm
Weight	6.5KG(without HDD)
