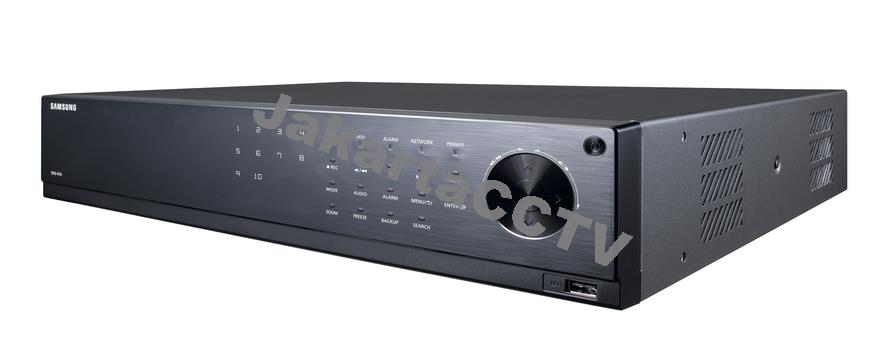

SAMSUNG SRD-894P

tidak termasuk pengiriman

• 8CH 1080p real-time DVR
• Up to 200(1080p)fps recording rate
• HDMI / VGA video output
• 8CH audio inputs / 1CH audio output
• Max. 4 internal HDDs
• Coaxial cable (Samsung CCVC, Pelco-C, ACP)
• Smart phone support (Android / iOS)
• Enhanced network bandwidth up to 64Mbps

Qty:

Overview
Contact Us

Jual NVR murah, SAMSUNG HANWHA TECHWIN SRD-894P yang bisa anda beli sekarang dari JakartaCCTV dengan harga yang terjangkau dan kompetitif. Digital Video Recorder HANWHA seri ini menerima input dari 8 saluran audio & kamera analog dan mampu merekam video dengan resolusi hingga 1080P pada kecepatan 200 fps. File yang direkam dapat diputar secara live pada layar dengan 8 tampilan terbagi yang mendukung format VGA / HDMI. Pengguna juga bisa memilih untuk menyimpan file secara internal karena DVR ini dapat dipasang dengan 4 internal HDD atau back up secara eksternal melalui 2 eSATA expansion bay.

Kabel Coaxial (Samsung CCVC, Pelco-C, ACP) digunakan untuk menghubungkan DVR ini dengan saluran inputnya yang disertai dengan bandwidth jaringan hingga 64 Mbps untuk memastikan transmisi data yang lancar. Selain itu DVR ini juga memungkinkan user untuk memantau secara mobile karena mendukung smartphone Android / iOS.

FITUR & FUNGSI SAMSUNG SRD-894P

8CH 1080p real-time DVR
Up to 200(1080p)fps recording rate
HDMI / VGA video output
8CH audio inputs / 1CH audio output
Max. 4 internal HDDs
Coaxial cable (Samsung CCVC, Pelco-C, ACP)
Smart phone support (Android / iOS)
Enhanced network bandwidth up to 64Mbps

Selain garansi resmi selama 2 tahun dari distributor HANWHA TECHWIN di Indonesia, anda juga akan mendapatkan tips yang aman dan berguna dalam memilih & membeli SAMSUNG NVR yang sesuai dengan kebutuhan anda dengan harga distributor yang murah jika anda membeli produk ini dari kami, JakartaCCTV, yang juga menawarkan jasa pemasangan CCTV & setting CCTV. Jadi tunggu apalagi ? Hubungi kami sekarang juga untuk mendapatkan SAMSUNG SRD-894P Network Video Recorder ini atau jika anda masih memiliki pertanyaan lebih lanjut mengenai produk ini atau paket CCTV kami lainnya.

Display
Video
Inputs	8CH BNC, 1080p / 720p AHD camera, NTSC/PAL
Resolution	1920 x 1080, 1280 x 720, 960 x 576, 704 x 576
Live
Frame Rate	200fps
Resolution	1920 x 1080, 1280 x 720, 960 x 576, 704 x 576
Multi Screen Display	1 / 4 / 7 / 9 / Sequence / PIP
Performance
Operating System
Embedded	Linux
Recording
Compression	H.264
Record Rate	Up to 200fps@1920 x 1080 Up to 200fps@1280 x 720 Up to 200fps@960 x 576 Up to 200fps@704 x 576 Up to 200fps@704 x 288 Up to 200fps@352 x 288
Mode	Manual, Schedule (Continuous / Event), Event (Pre / Post), Time lapse (1 ~ 25fps)
Event	Video loss, Motion (Level 1 ~ 10), Alarm, Tampering (Level 1 ~ 3)
Overwrite Modes	Continuous
Pre-alarm	Up to 30sec (5, 10, 20, 30sec)
Post-alarm	Up to 6hour (5,10, 20, 30sec, 1, 3, 5, 10, 20min, 1, 2, 3, 4, 5, 6hour)
Search & Playback
Search Mode	Date/Time, Event, Backup, POS (SD signal only), Motion (*All search include preview function)
Playback Function	Fast forward / backward (2x, 4x, 8x, 16x, 32x, 64x) Backward play with i-frame only Slow forward / backward (1/2x, 1/4x, 1/8x) Step forward / backward (2x, 4x, 8x, 16x, 32x, 64x) Backward play with i-frame only
Network (IPv4)
Transmission Speed	Option 1) 1M ~ 2M (PAL : 200fps), 4CIF (PAL : 200fps) Option 2) 4CIF / 2CIF / CIF (PAL : 100 / 200fps)
Bandwidth	Up to 64Mbps
Bandwidth Control	Selectable
Stream	H.264 (1080p / 720p / 4CIF / 2CIF / CIF selectable)
Max. Remote Users	Search 3 / Live unicast 10 / Live multicast 20
Protocol Support	TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP, SNMP
Monitoring	SmartViewer, Webviewer, SSM (CMS)
Smart Phone
Platform	Android, iOS
Protocol Support	RTP, RTSP, HTTP, CGI
Max. Remote Users	Live 4, Search 1CH
Storage
Internal HDD	Up to 4 SATA HDDs
External (e-SATA Interface)	Up to 2 expansion bay (*Model : SVS-5R)
USB (Backup)	2 USB ports
File Format (Backup)	BU (DVR player), EXE (Include player), AVI
Security
Password Protection	1 Admin, 10 Group, 10 User per 1 group
Data Authentication	Watermark
Interface
Monitors
VGA	1 VGA (1280 x 720, 1280 x 1024, 1920 x 1080)
HDMI	1 HDMI (1280 x 720, 1280 x 1024, 1920 x 1080)
Spot Composite	Digital spot (2CH) *Incldued OSD on screen, Multi mode support
Audio
Inputs / Output	8CH line in (Built-in 4CH, Option : Audio extension cable) / 1CH line out
Compression	G.711
Sampling Rate	8KHz
Alarm
Inputs / Output	Terminal 8 inputs (NO/NC) / Terminal 4 relay outputs (NO/NC), Rating : 30V DC / 2A, 250V AC / 0.25A
Remote Notification	Notification via e-mail
Connections
Ethernet	1 RJ-45 10/100/1000 Base-T
Serial Interface	RS-232/RS-485 (Full duplex) for PTZ, Samsung system keyboard
USB	USB 2.0, 2 ports
Application Support	Mouse, Remote controller
RS-485 Protocol	Samsung-T/E, Pelco-D/P, Panasonic, Phillips, AD, DIAMOND, ERNA, KALATEL, VCL TP, VICON, ELMO, GE
Coax Protocol	Pelco-C (Coaxitron), AHD : ACP (AHD Coax Protocol)
General
Electrical
Input Voltage / Current	100 ~ 240V AC ±10%, 50/60Hz, Auto ranging
Power Consumption	Max. 31.6W (1 x 1T HDD)
Environmental
Operating Temperature	+0°C ~ +40°C (+32°F ~ +104°F)
Operating Humidity	20% ~ 85% RH
Mechanical
Dimensions (WxHxD)	440.0 x 88.0 x 384.8mm (17.32" x 3.46" x 15.15")
Weight (With hard disks)	Approx. 5.11Kg (11.27 lb)
Language
Language	English, French, German, Spanish, Italian, Russian, Polish, Czech, Turkish, Netherlands, Portuguese, Swedish, Danish, Rumania, Serbia, Croatia, Hungary, Greek, Finnish, Norwegian, Korean, Japanese, Chinese (Traditional), Thai, Taiwanese (25 Language)
